[Abaqus][midas2Abaqus][FEM] 金属箱冲击模拟 (Dynamic Impact Analysis of Metal Box by Abaqus) (midas2Abaqus软件测试案例 )

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。

A soft metal cylindrical box dynamic impacted by a hard steel block.

用一个硬的金属块冲击一个软的圆柱形金属箱。

一个 midas2Abaqus 简单测试算例。关于midas2Abaqushttp://www.jdcui.com/?page_id=10470

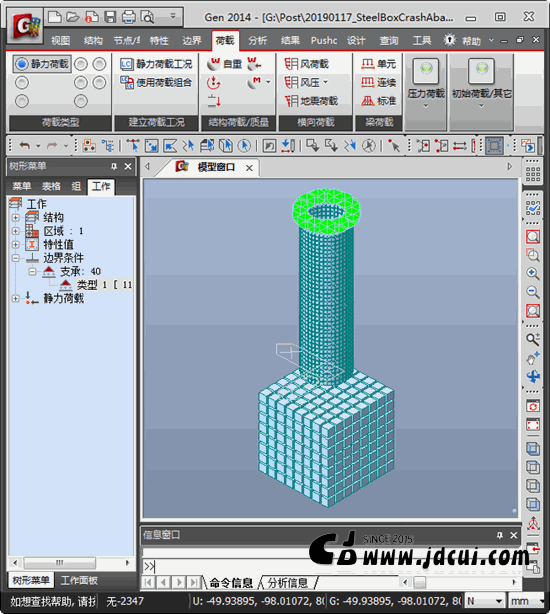

  • midas Gen Model

  • midas2Abaqus Model

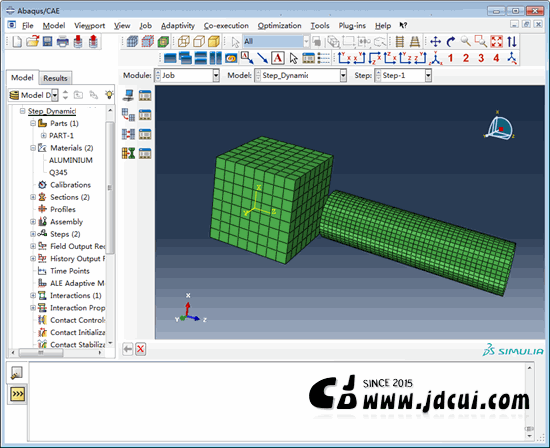

  • Abaqus Model

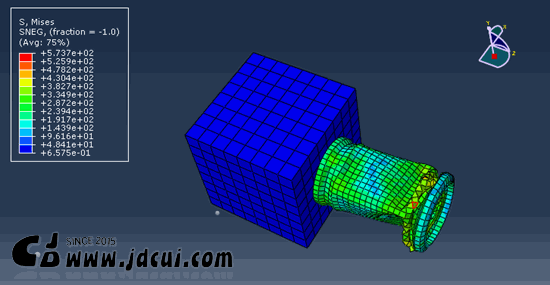

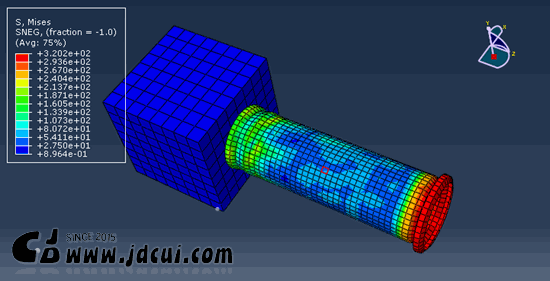

  • Abaqus Analysis Results
