分享一个小程序。  A small program to share with you.

  • 程序图标 ( Program Icon )

        CADtoXTRACT

  • 程序名称 ( Program Name)

CAD to XTRACT

  • 程序作者 ( Author)

JiDong Cui (崔济东) 1

1.华南理工大学  土木与交通学院;

  • 程序介绍 ( Program Introduction)

XTRACT是一个功能十分强大的截面分析软件,在做结构设计和分析时经常用到。然而XTRACT自带的截面建模功能比较弱,尤其是在创建任意形状截面的时候。为了提高效率,我编制了CAD to XTRACT插件,其利用了AutoCAD强大的绘图功能,在工程师熟悉的AutoCAD上绘制好截面,然后转换成XTRACT模型。下面介绍一下插件。

XTRACT is a powerful sectional analysis program, it is frequently-used in structural design and analysis. However, the build-in tools for creating section in XTRACT is not very convenient , especially in the creation of an arbitrary cross-section. Based on this consideration, I developed a AutoCAD plugin — CAD to XTRACT for rapid creating section , which is simple and powerful. You can draw the section in AutoCAD and used the CAD to XTRACT plugin to export the XTRACT files. Here is the introduction of this plugin!

  • 程序界面 ( Program Interface )

C2X

C2X_About

  • 程序使用 ( Step to Use )

(1)事先在AutoCAD将需要计算的截面绘制好,以(N-mm为单位)。截面边线和开洞用闭合的Pline绘制,钢筋用Circle命令绘制。

(2)打开AutoCAD 2010,输入命令:【Netload】,导入插件:CADTOXTRACT_cad2010_x64_20160217.dl

          ( PS. 不同的版本AutoCAD找相应版本的.dll文件)

(3)输入命令:【CX】,弹出CAD to XTRACT插件界面

(4)通过插件,定义好材料,通过扑捉绘制好的Pline和Circle完成截面的定义

(5)完成定义,导出XTRACT使用的项目文件(.xpj)或截面文件(.sec)

(6)打开XTRACT,将上述文件导入,修改材料属性、补充定义分析工况后即可进行截面分析

(1)First,draw the section in AutoCAD in units of N-mm. Sectional edges and openings  must be drawn with a closed pline, and the rebars must be draw with Circle command.

(2)Open AutoCAD 2010 , input command  [Netload] , and load the plugin – CADTOXTRACT_cad2010_x64_20160217.dl.

( PS. The version of AutoCAD and the .dll file  must match each other. )

(3)Input command :【CX】and pop up  the CAD to XTRACT interface.

(4)Compelete the definition of materials through the GUI of the plugin, and complete the definition of the section by picking the pline and circle.

(5)Export XTRACT project file (.xpj) or section file (.sec).

(6)Open XTRACT and import the file exported. Until now, the work left before you can carrying out the analysis is to modify the material properties and define the load case.

  • 例子 ( Examples )

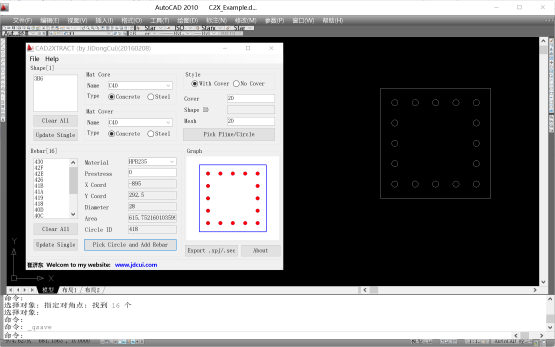

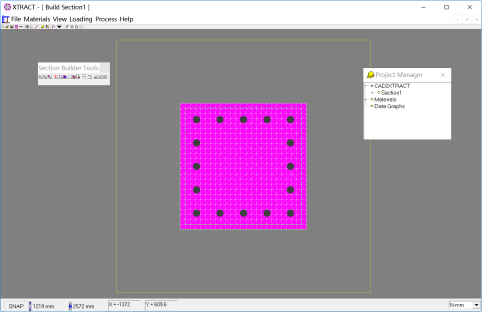

(1)例1 – 普通混凝土截面(Example 1 – RC Section

EXAMPLE1_CAD

EXAMPLE1_XTRACT

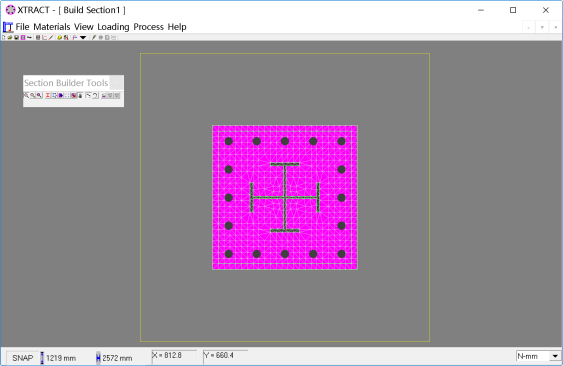

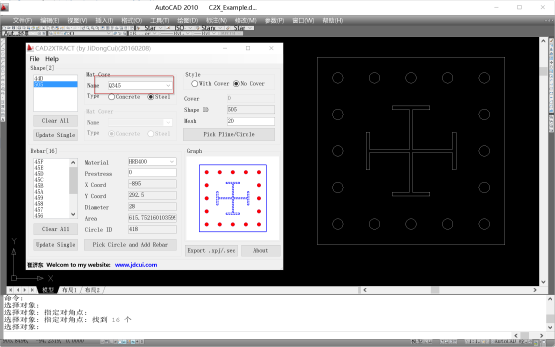

(2)例2 – 型钢混凝土截面(Example 2 – Steel reinforced concrete Section

EXAMPLE2_CAD

EXAMPLE2_XTRACT

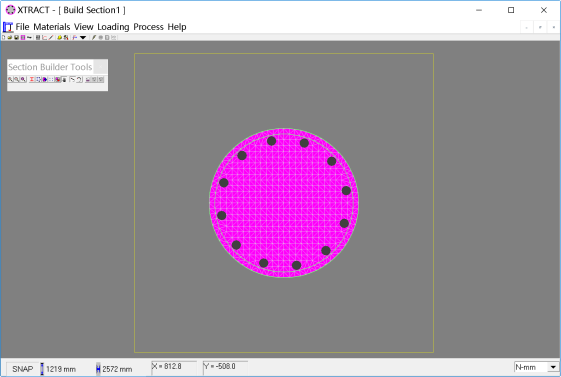

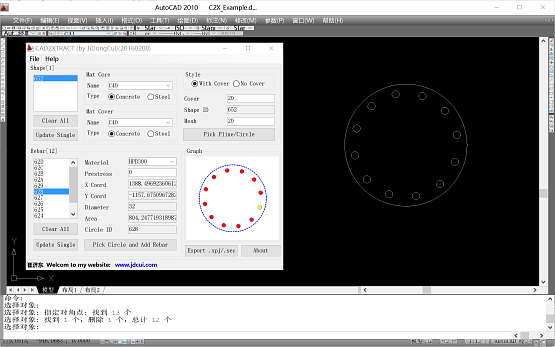

(3)例3 – 圆形截面(Example 3- Circular Cross-section

EXAMPLE3_CAD

EXAMPLE3_XTRACT

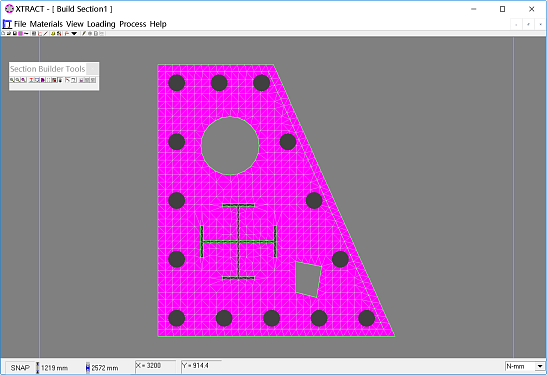

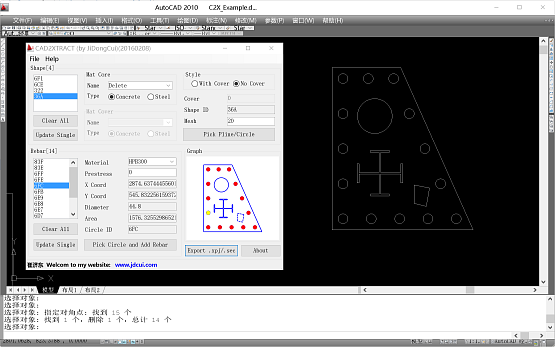

(4)例4 – 含开洞复杂截面(Example 4 – Complicated Cross-section with Hole

EXAMPLE4_CAD

EXAMPLE4_XTRACT

  • 程序下载 ( Program Download )

PS. 程序免费下载 ,欢迎大家给我提意见 ,敬请尊重劳动成果

[1] Document : CADtoXTRACT 说明文档和例子[.zip]

[2] 20160217 Edition (Outdated!!)

CADTOXTRACT_cad2008_x64_20160217[.zip]

CADTOXTRACT_cad2010_x64_20160217[.zip]

CADTOXTRACT_cad2014_x64_20160217[.zip]

CADTOXTRACT_cad2016_x64_20160217[.zip]

        20160317 Edition (Old!!)

CADTOXTRACT_cad2010_x64_20160317[.zip]

      a. 修正了20160217版本Shape多段线绘制的bug。

 20160217版本插件,用多段线绘制Shape的时候,n个点的多段线,仅能用(n-1)个点来绘制,并选择闭合,否则可能有形状无法导入。(PS.  感谢清华同衡 付工 的反馈.十分感谢)

      b. 20160317版本,增加了按中国规范材料标准值和设计值的选项,输出后不需要修改材料。

20170221 Edition (New!!)

CADTOXTRACT_cad2010x64_20170221[.zip]

a. 添加了带圆弧截面的支持,详见 (博文: CAD2XTRACTv1.2插件增加带圆弧截面建模功能

(PS.  感谢 小叶子 的反馈.)

  • 注意事项 (Notes )

( PS.不同版本的AutoCAD找相应版本的.dll文件,如果没有对应AutoCAD版本的.dll文件,找与AutoCAD版本相近的.dll文件。32版本的AutoCAD一般情况上面的.dll文件也是可以是适用的。如果有问题,请给我留言。)

( PS. The version of AutoCAD and the .dll file  must match each other. If there is no corresponding .dll file for your AutoCAD , use the .dll file with closed AutoCAD version.  The above 64-bit .dll file is often applicable to 32-bit AutoCAD. )

  • 相关话题 ( Related Topics)

[01] CAD to XTRACT 插件应用的一些问题

    (PS. 如果你使用 CAD to XTRACT 插件遇到问题,请一定要先看看这个博文,里面对一些常见的问题做了说明。)

[02] XTRACT PMM 3D屈服面的绘制(Origin版)

[03] XTRACT PMM 3D屈服面的绘制(MATLAB版)

[04] CADtoXTRACT 插件复杂嵌套截面建模实例

[05] CADtoXTRACT应用问题之-XTRACT数据的精度

  • 注释 ( Comments )

 软件是免费的。如果你发现软件有bug或者软件使用有问题,请留言给我,或者通过邮箱联系我。邮箱:jidong_cui@163.com

This app is free . If  you have found any bug in the program or have any problem when using the program, please don’t hesitate to contact me directly.  Email : jidong_cui@163.com

如有错误,请批评指正。如果你喜欢,请在下面 点个赞 吧!! :-)  :-)  :-

Please correct me if I’m wrong. If you like this posts, please give me a thumbs up rating on the button below !!!!  :-)  :-) )
