[软件][编程][开发][结构设计] BeamEvelopes: 连续梁包络分析工具(Continuous Beam Envelope Analysis Program)

程序研发组给设计师打造的一款小工具,可以用于地下室车道侧臂的受力分析设计。

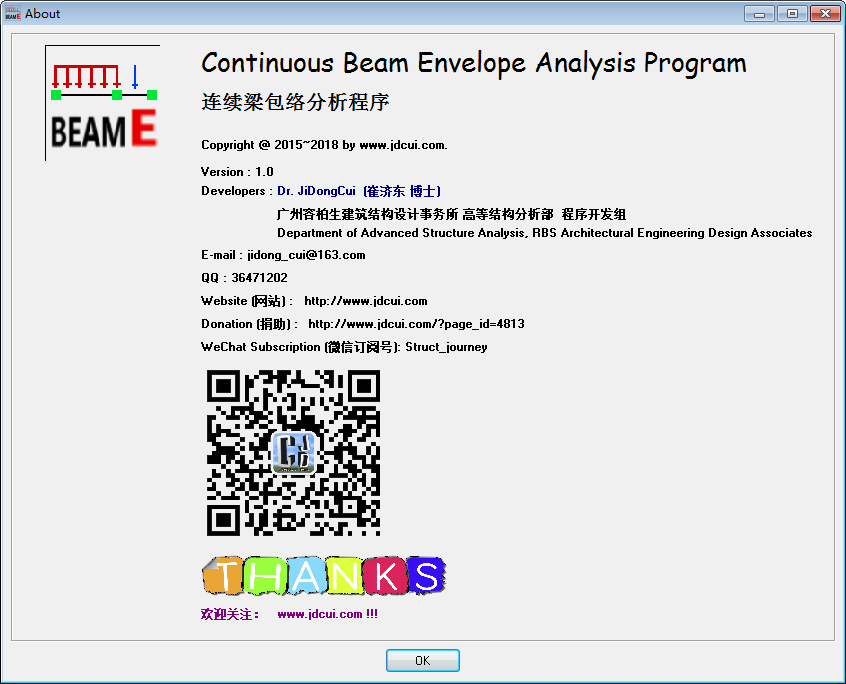

  • 程序图标 ( Program Icon )

  • 程序介绍 ( Program Introduction)

连续梁静力分析,连续梁移动荷载包络分析。可以用于地下室侧壁相邻的车道侧壁的受力分析。Continuous beam static analysis, continuous beam moving load envelope analysis. It can be used for the force analysis of the side wall of the driveway adjacent to the side wall of the basement.

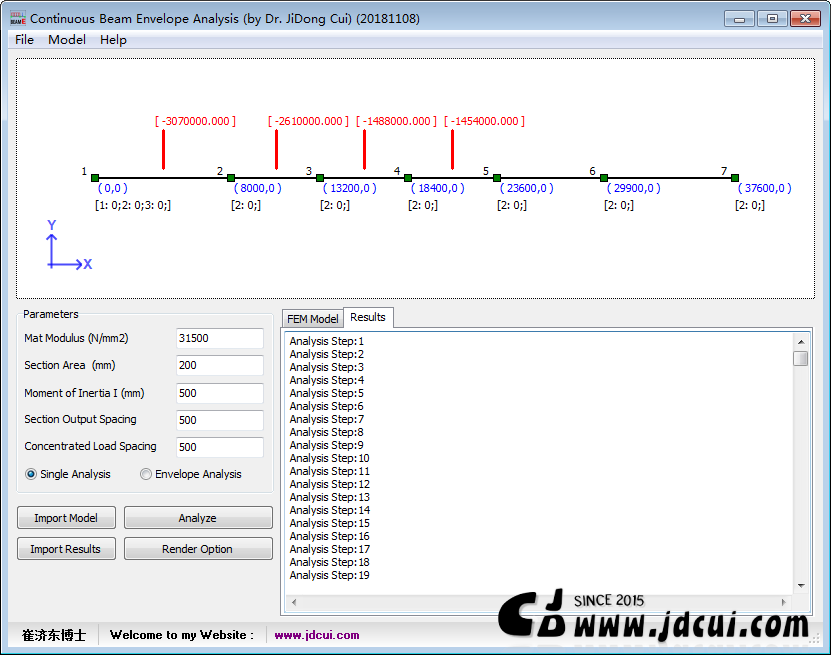

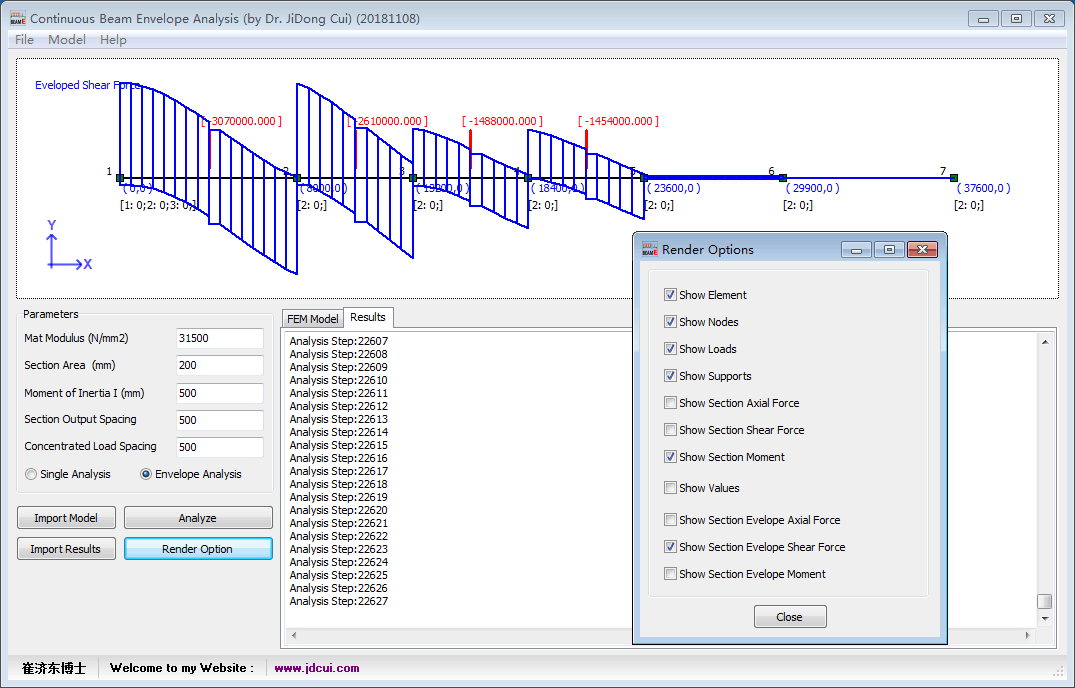

  • 程序界面( Program Interface )

  • 案例( Example )

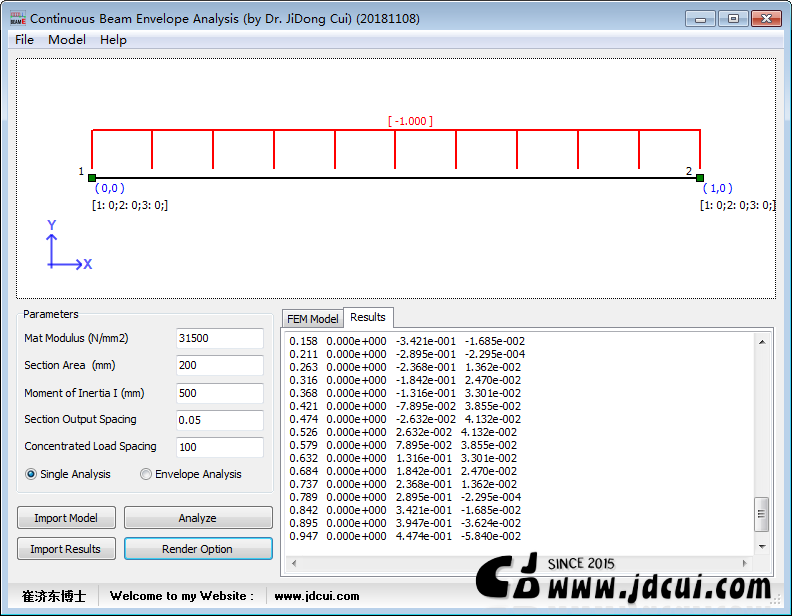

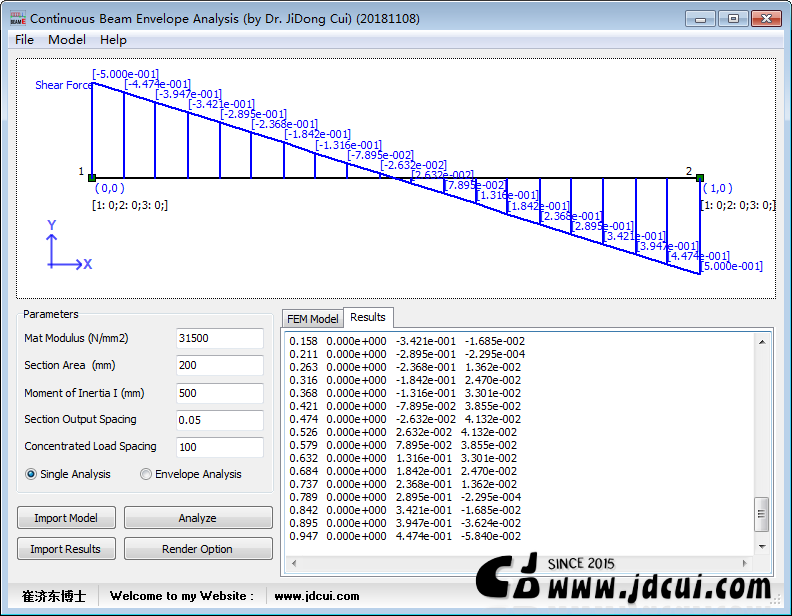

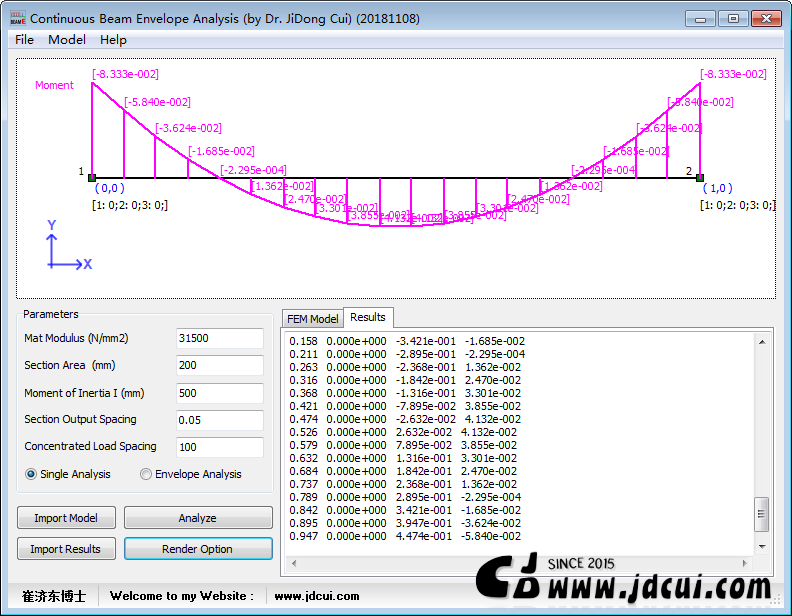

(1)两端固支、跨中均布荷载梁的静力分析

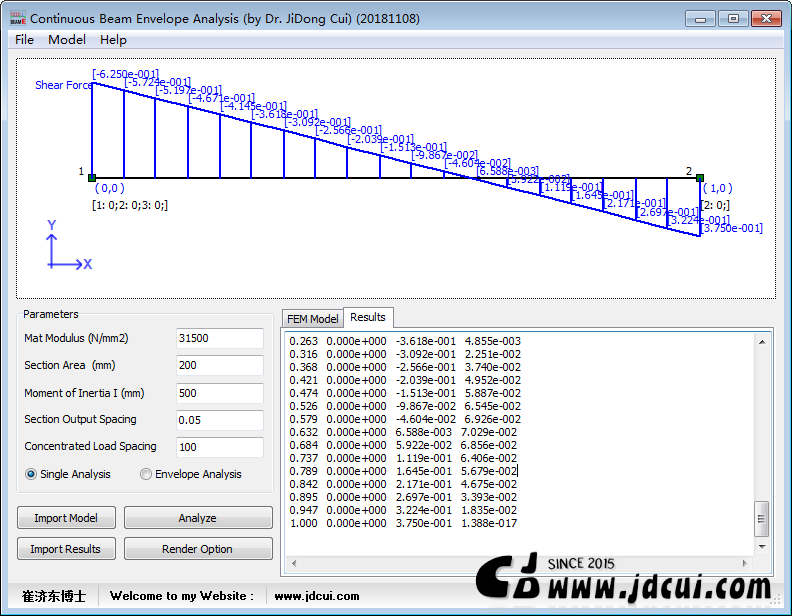

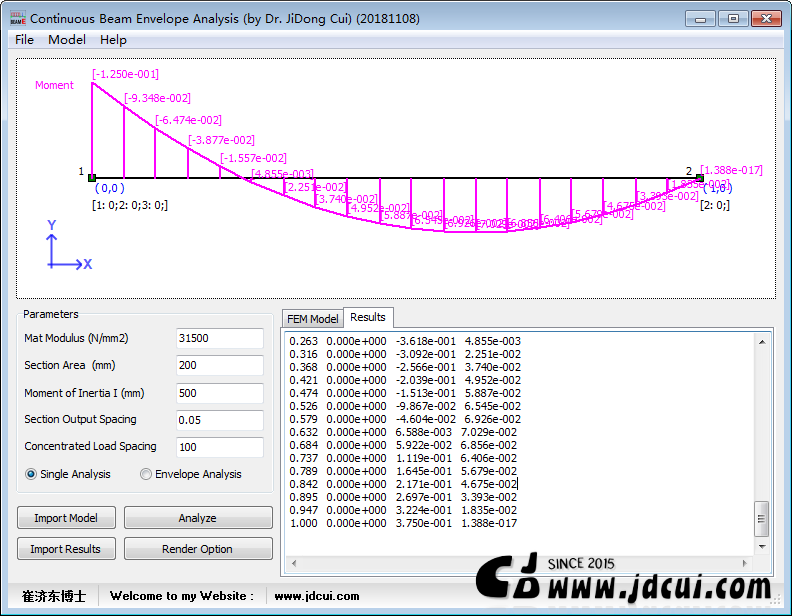

(2)一端固支、一端铰接、跨中均布荷载梁的静力分析

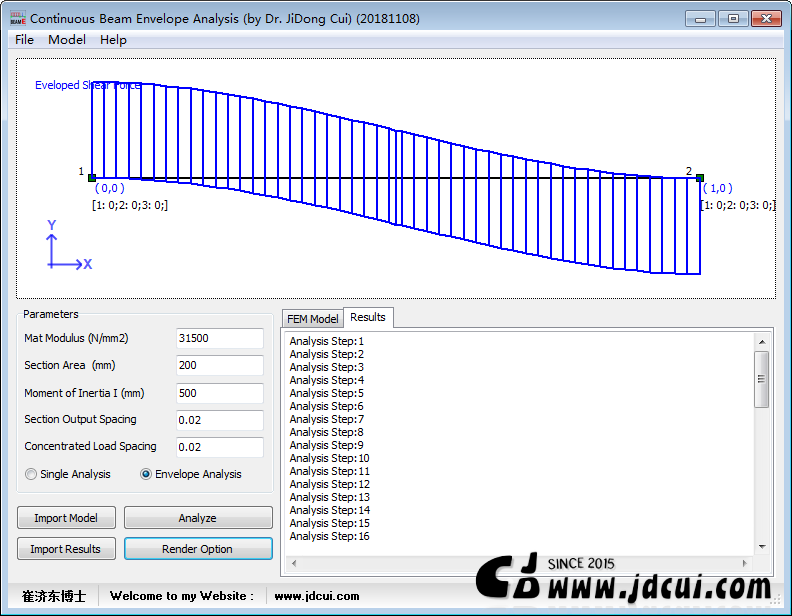

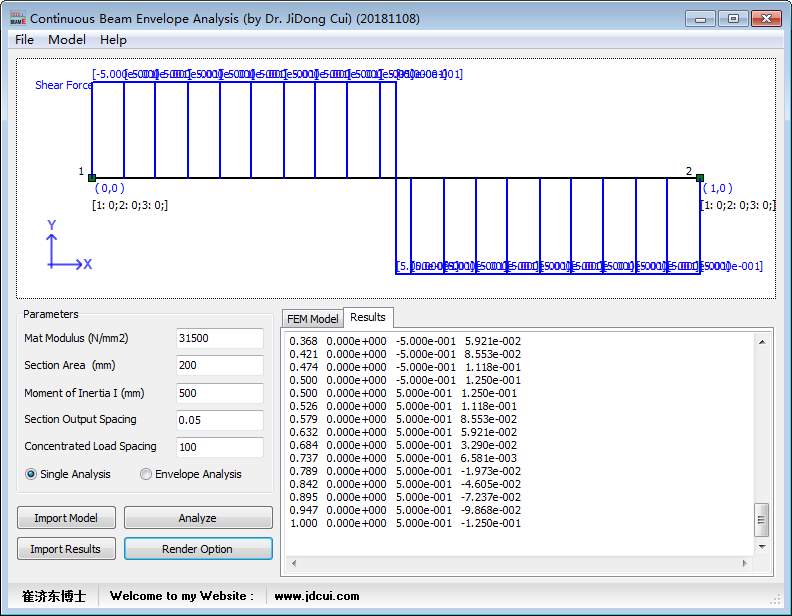

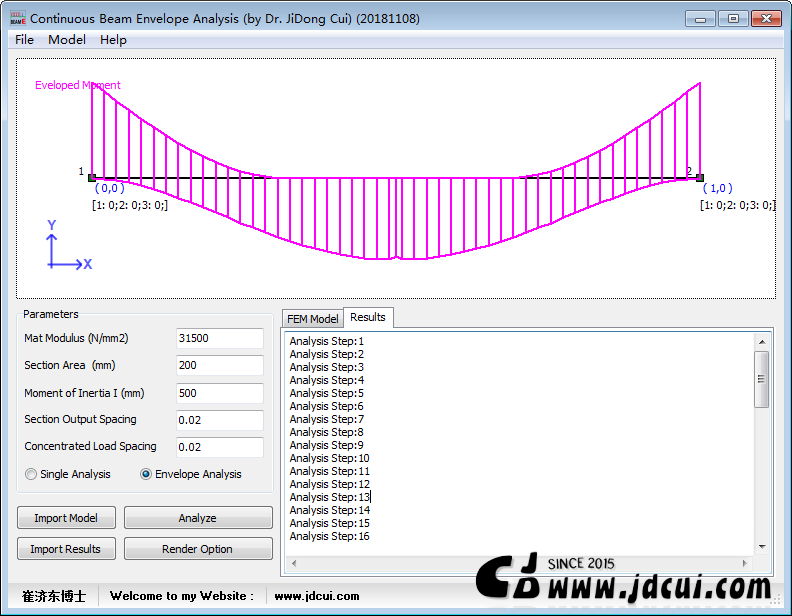

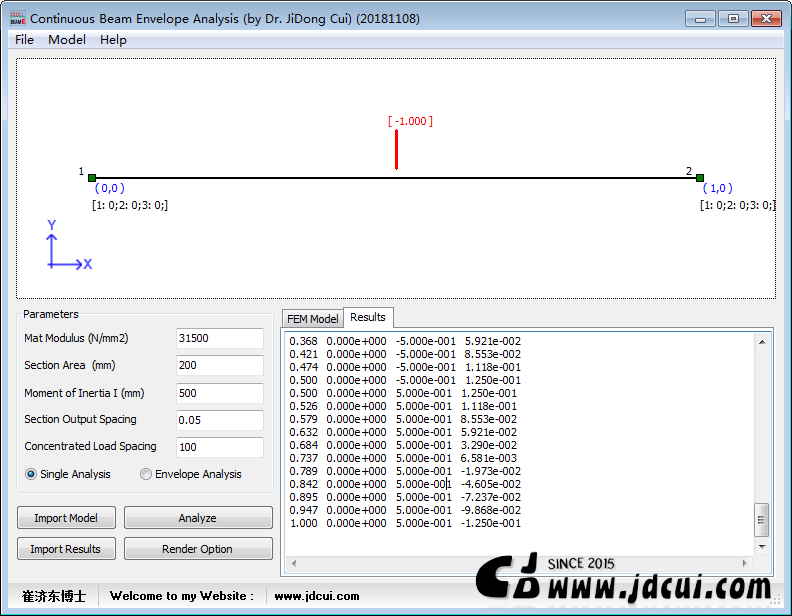

(3)两端固支梁、跨中集中荷载梁的静力分析及移动荷载包络分析

  • 相关应用 ( Related Posts)

[1] [结构设计][包络分析]BeamEvelopes应用案例:移动荷载下车道侧壁内力包络分析
