[midas2Abaqus][结构分析][abaqus] 基于Pushdown方法的连续倒塌分析算例 (Progressive Collapse Analysis Example based on Pushdown Method)

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。

Progressive collapse analysis example based on Pushdown method using Abaqus.

采用Abaqus基于Pushdown方法的连续倒塌分析算例。也算是midas2Abaqus软件的应用案例吧。

测试算例。还有待完善。

关于midas2Abaqushttp://www.jdcui.com/?page_id=10470

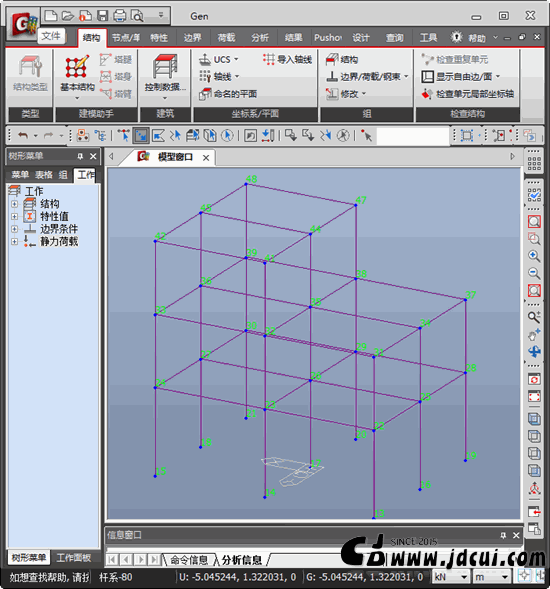

  • midas Gen Model

  • midas2Abaqus Model

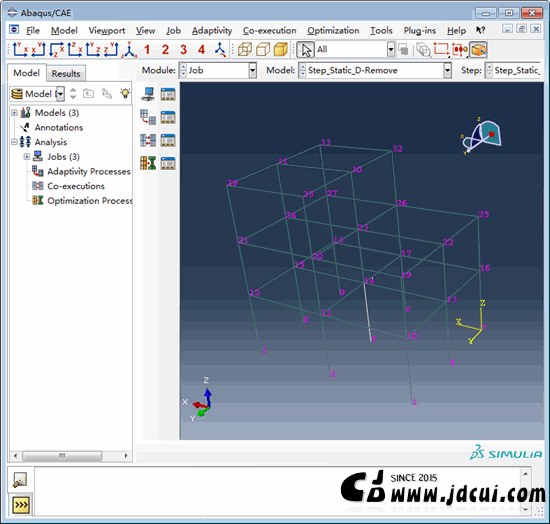

  • Abaqus Model

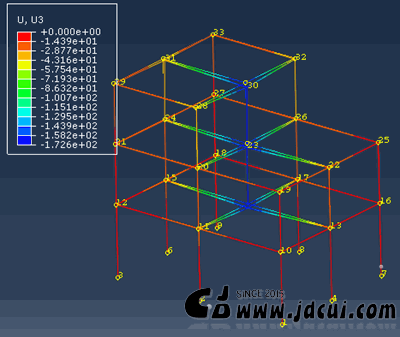

  • Abaqus Results

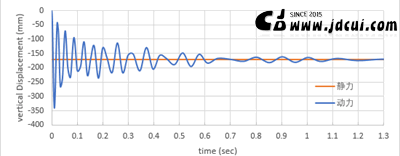

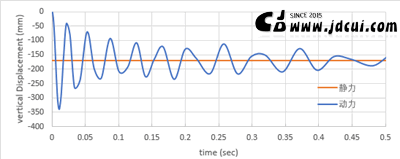

静力及动力分析下抽柱点的竖向位移如下图所示(vertical displacement of static and dynamic analysis )。由图可见,1s后动力分析的抽柱点的位移趋于稳定,趋于静力分析的竖向位移结果。

6 0
