[结构设计][ENGT][超限设计] 框架柱受剪截面验算(剪压比)(ENGT超限高层应用案例13)

实干、实践、积累、思考、创新。


案例:采用ENGT(ENGT: Engineering Tookit [建筑结构辅助设计工具集成系统])进行框架柱剪压比分析,根据规范计算剪压比,进行受剪截面验算。

关于ENGT的更多信息,可以访问:ENGT: Engineering Tookit [建筑结构辅助设计工具集成系统]

STEP 1: Import Model

STEP 2: Pick the Components

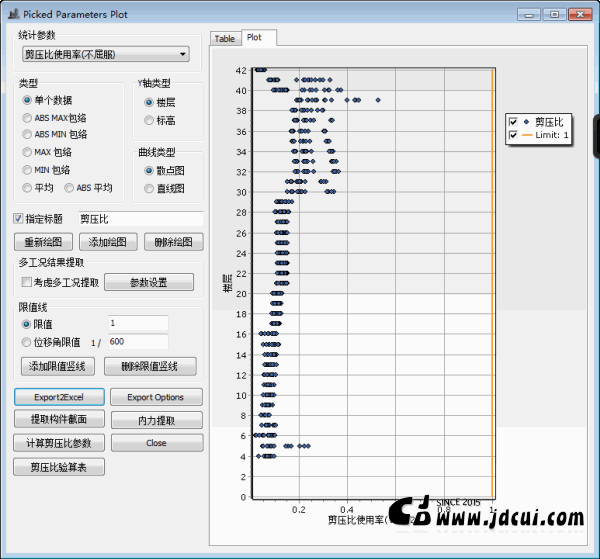

STEP 3: Run Analysis

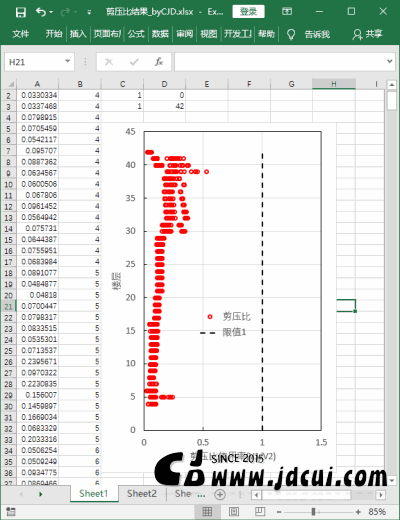

STEP 4: Export Excel Plot for Report
