[ETABS] ETABS2016剪力墙网格划分尺寸 (Auto Rectangular Mesh Setting for Walls)

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。


ETABS 2016 剪力墙网格剖分设置路径

Assign-> Shell Assignment-> Wall Auto Mesh Options

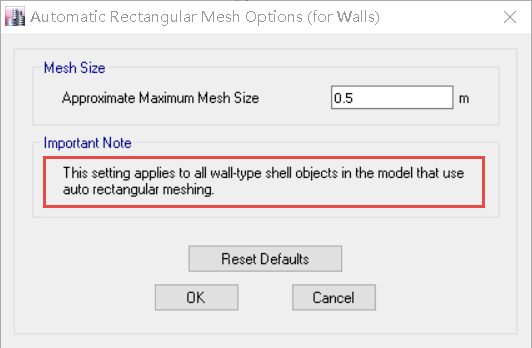

其中设置Auto Rectangular Mesh后,可以在高级选项中设置网格剖分的最大尺寸 Approximate Maximum Mesh Size

注意,这个网格尺寸是针对所有设置了Auto Rectangular Mesh属性的剪力墙。
