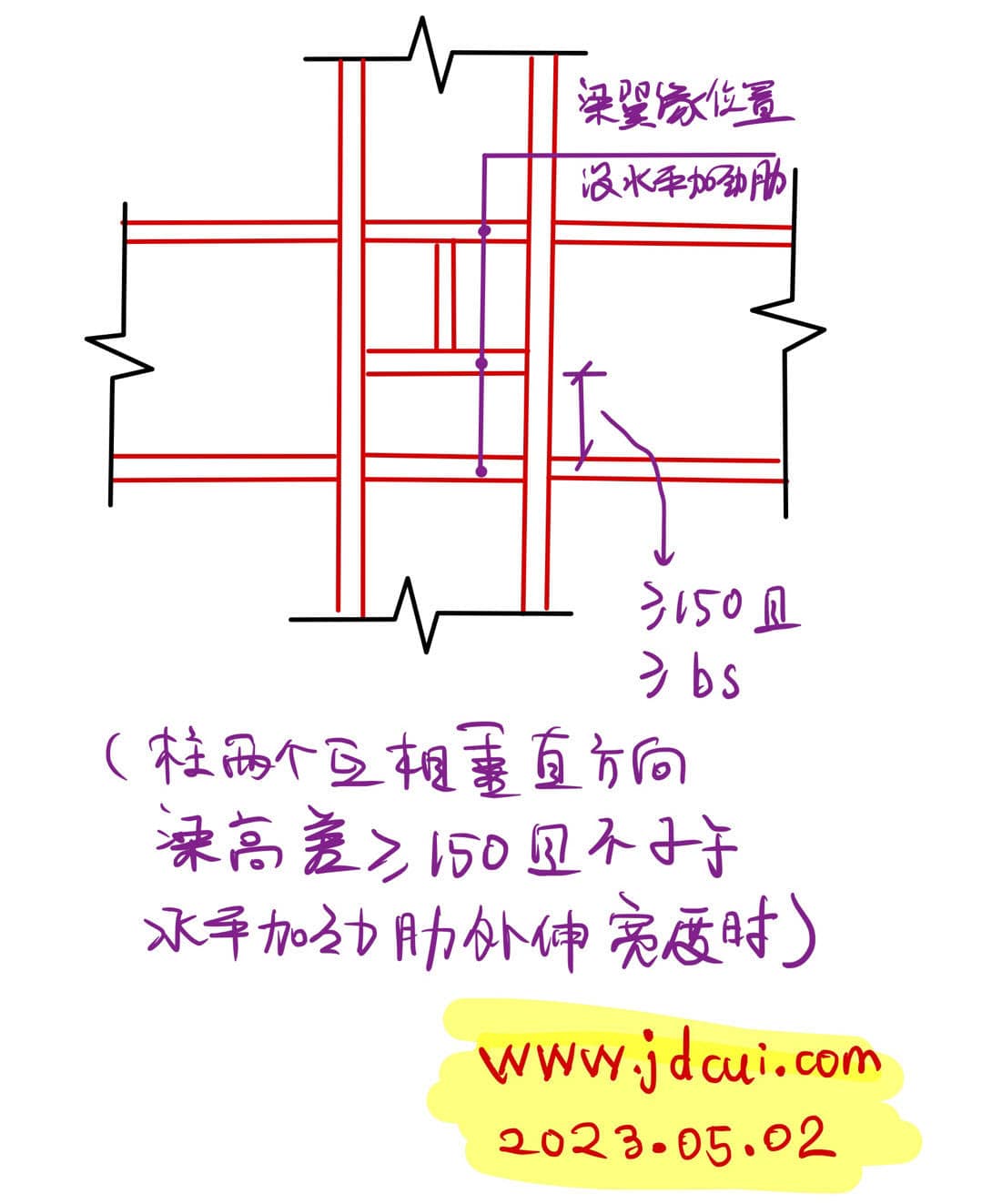

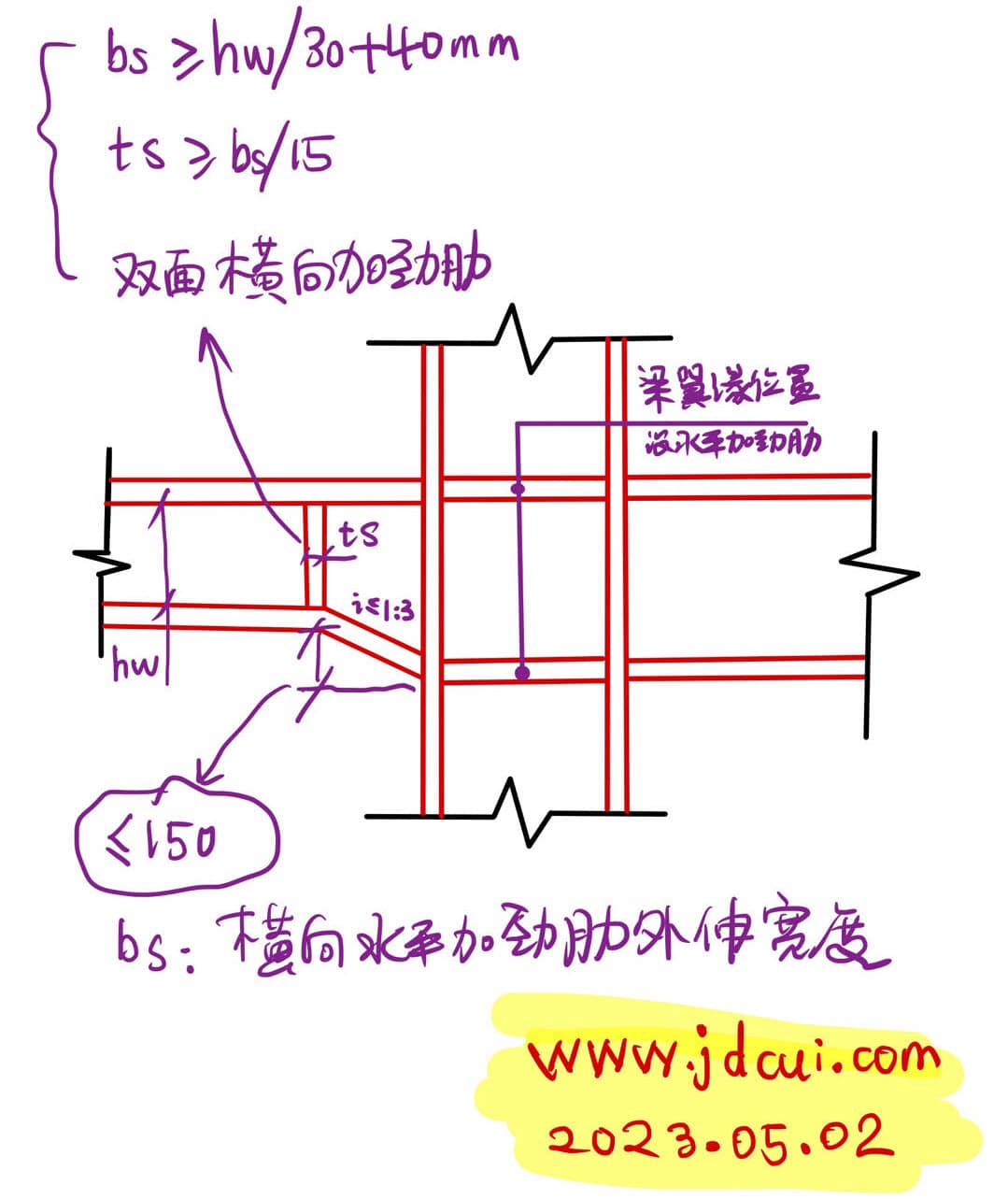

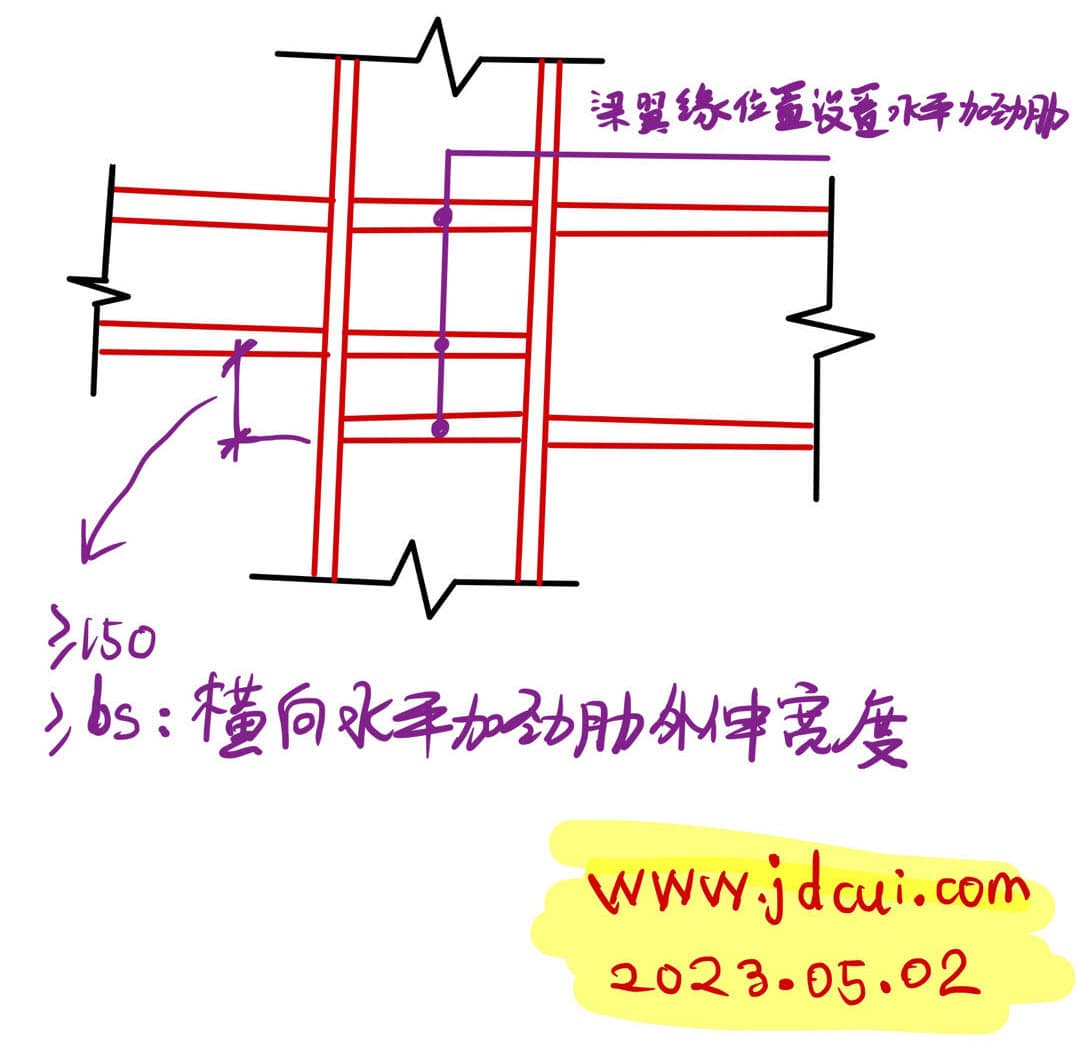

[手绘大样][Detail Drawing] 不等高梁与柱刚性连接构造[Setting of Horizontal Stiffening Ribs in Columns with Unequal Beam Heights on Both Sides]
