有限元分析的许多结果均通过云图展示,很多时候,在云图中取隐藏单元的网格可以更加酷炫。
在 Abaqus 中可以通过设置 Common Plot Option来控制对象的显示方式,如下图所示。

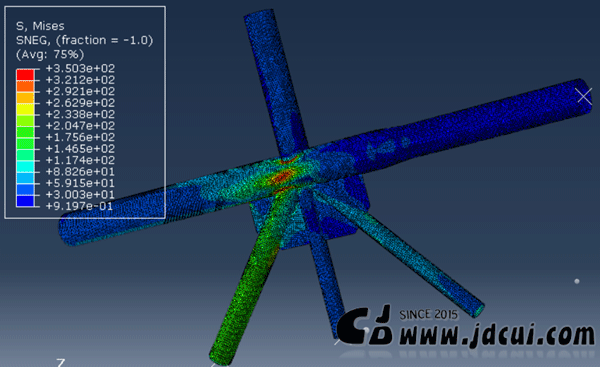

带网格显示:

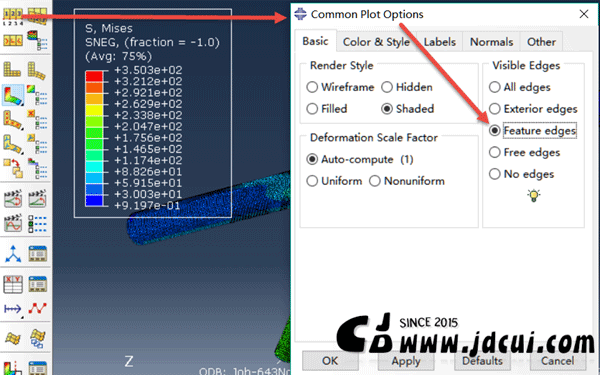

设置边的显示方式:
去除网格显示:
