[Midas]Midas Gen 提示”刚性连接节点XXX上重复输入相同自由度”错误

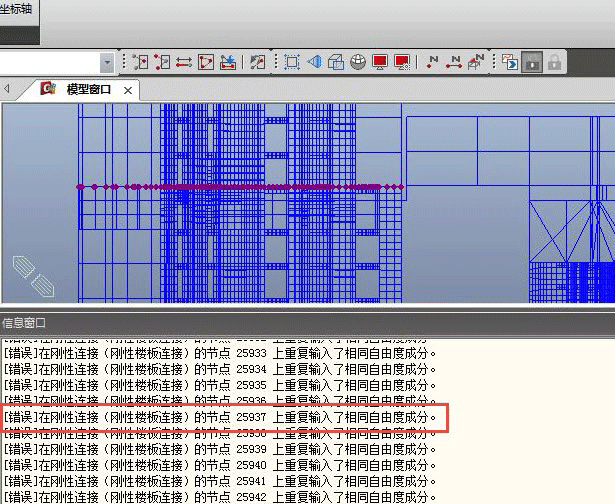

如下图所示,运行Midas Gen分析,提示错误:“[错误]在刚性连接(刚性楼板连接)的节点XXXX上重复输入了相同的自由度成分”;出现这种问题是有多种可能,比如,节点定义了刚性隔板的同时又定义其他的主从约束等。解决方法就是删除多余的约束。

11 2
