Abaqus 出现“The area of XXX elements is zero, small, or negative”错误提示

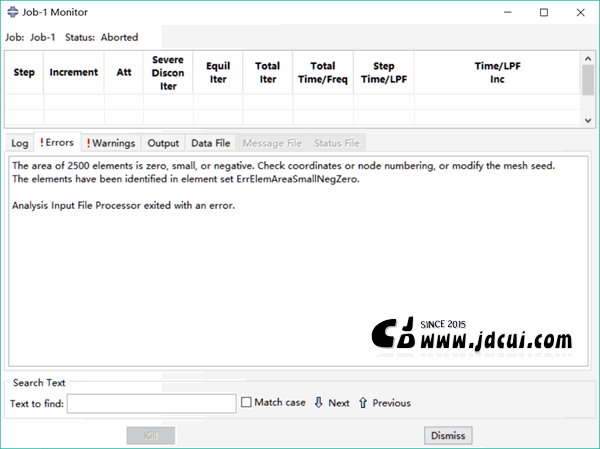

Abaqus “提示单元面积为零,很小或者为负数” 错误,如下所示:

The area of 2500 elements is zero, small, or negative. Check coordinates or node numbering, or modify the mesh seed. The elements have been identified in element set ErrElemAreaSmallNegZero.

Analysis Input File Processor exited with an error.

经仔细检查,是因为单元编号顺序出现了错误,将单元编号顺序改为逆时针即可解决问题。
