[优化][ABAQUS][Midas2Abaqus] Topology Optimization of a short cantilever beam by Abaqus [短悬臂梁拓扑优化分析算例]

又一个简单的优化小例子, PS. 某人答对了结果 :lol:

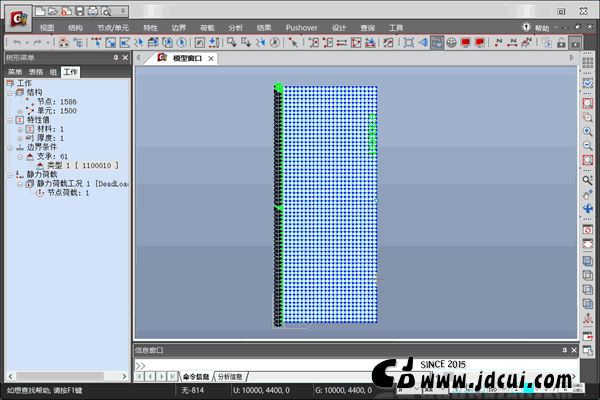

【1】Midas Gen Model

【2】Midas2Abaqus Model

【3】Abaqus Model

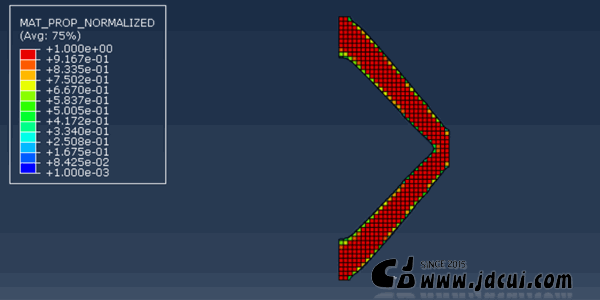

【4】Optimization Results

优化目标:刚度最大化。

约束条件:体积优化 30%。

最终结果是一个三角形。
