[FEM][SteelStructures] 有侧移与无侧移框架的屈曲模态 (Buckling Modes of Frames with and without Sidesway)

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。

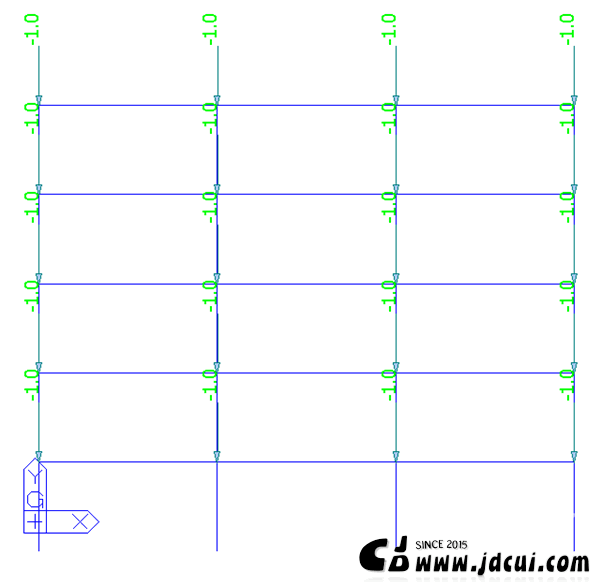

有侧移框架及无侧移框架是钢结构中常用的概念,有侧移及无侧移框架构件的计算长度取值不同。

有侧移框架柱,计算长度系数大于1.0,而无侧移框架柱计算长度系数在0.5~1.0之间,为啥 😆 ,仔细想想,其实从屈曲模态也可以看出来。

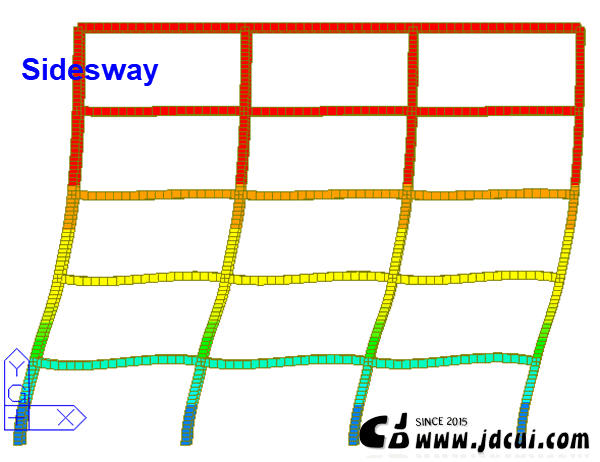

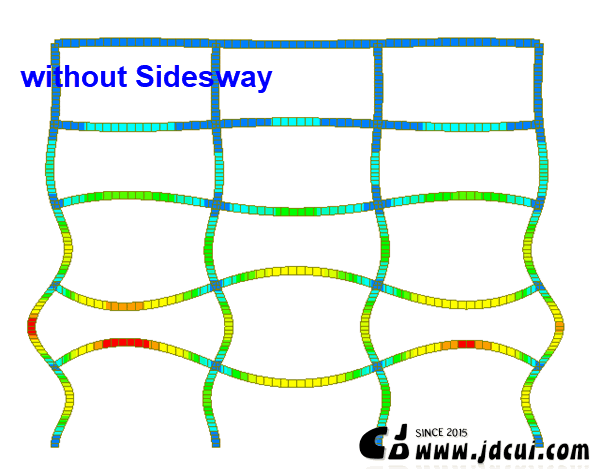

有侧移及无侧移框架的屈曲模态差别,有侧移框架失稳为反对称失稳,构件为双曲率屈曲,无侧移框架失稳为对称失稳,构件为单曲率屈曲。。。
