[笔记][非线性][OpenSees] 多个单轴二折线非线性本构并联后的滞回曲线是什么样子的?

实干、实践、积累、思考、创新。


两个单轴二折线随动强化本构并联叠加后滞回曲线是什么样子的呢?在讨论别的问题的时候突然遇到。一开始以为组合后还是二折线,后面仔细想想发现不对。那还是动手测试吧,看看多个单轴二折线随动强化本构并联叠加后滞回曲线是什么样子?

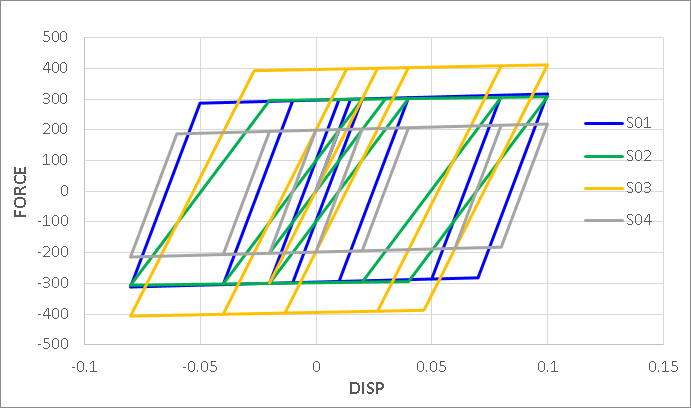

首先用 OSMatTest [Tool][软件] OSMatTest: OpenSees Material Test [OpenSees单轴材料测试工具] )生成几个二折线滞回,如下图所示。

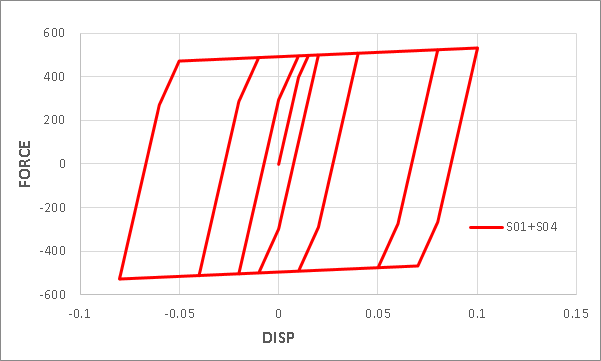

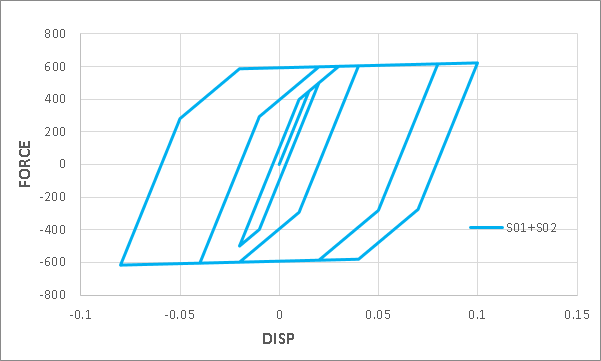

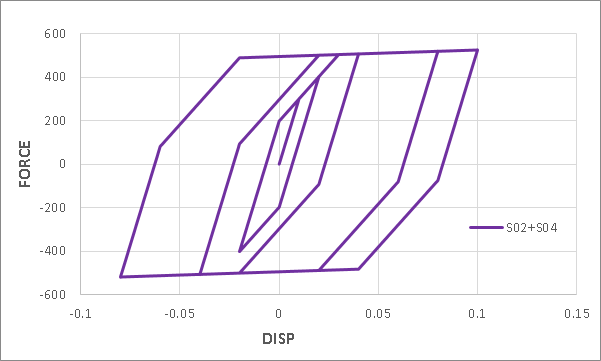

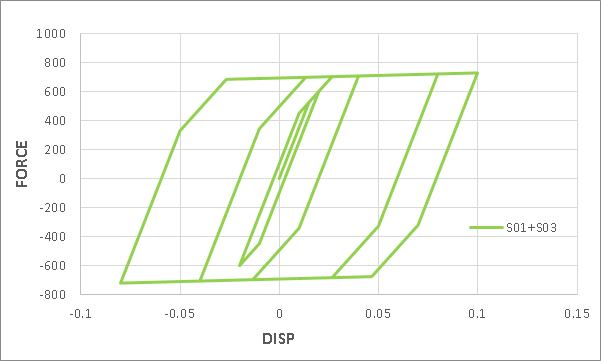

2个二折线本构并联:

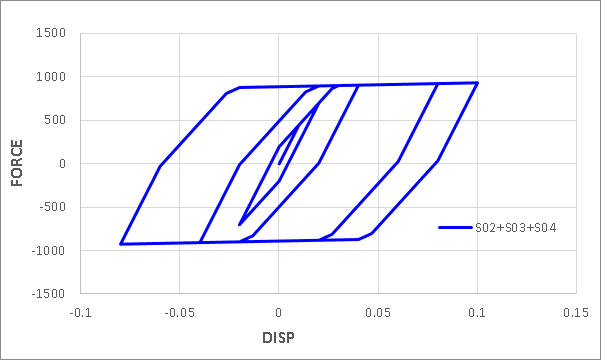

3个二折线本构并联:

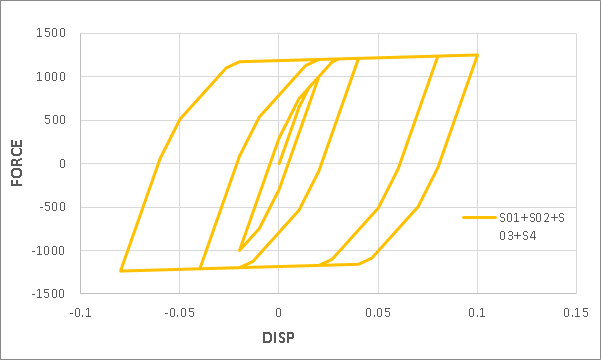

4个二折线本构并联:

由上面的结果可见:大概率上,多个二折线并联后的滞回曲线不再是二折线,除非并联的各个本构的屈服位移相同;其中2个二折线本构并联后成为3折线,3个二折线本构并联后成为4折线,4个二折线本构并联后成5折线。
