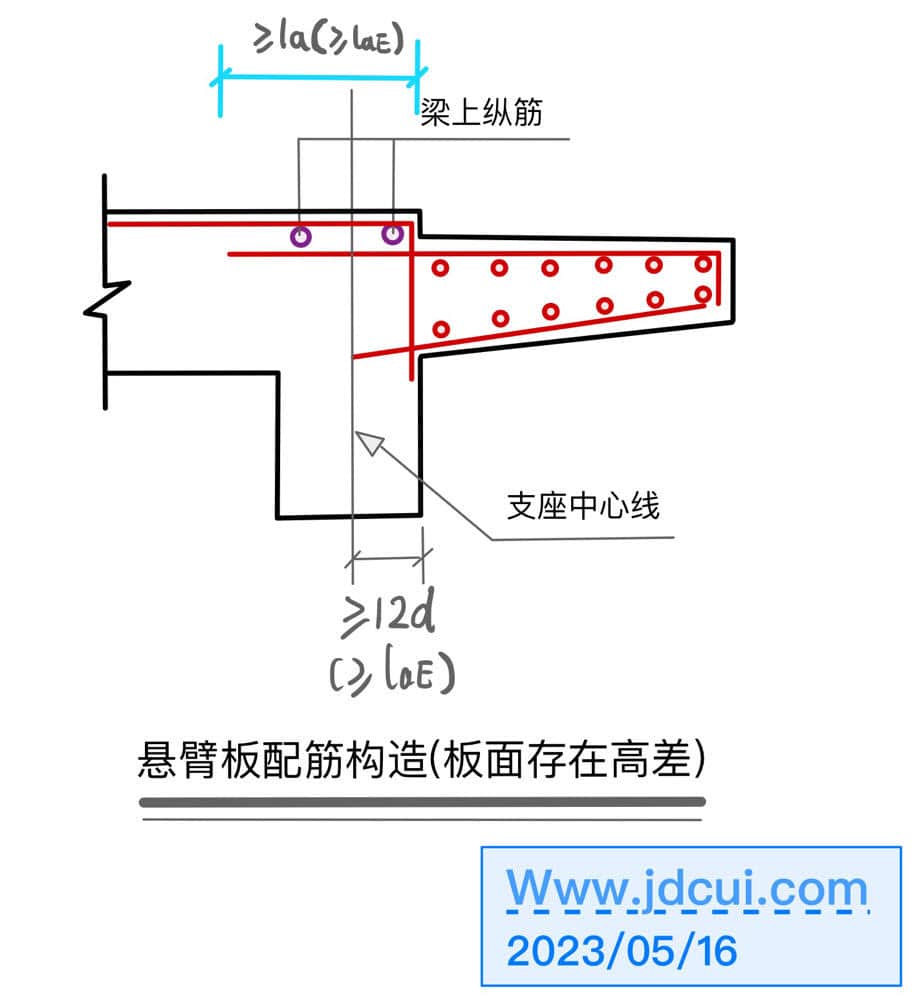

悬臂板配筋构造(有高差)，参考 图集 17G101-11。
（1）当悬臂板的跨度较大且板面与内跨标高一致时，由于悬臂支座处的负弯矩对内跨中有影响，当内跨跨度较小时，甚至会出现全跨均为负弯矩，因此上部钢筋应通长配置。板面有高差时应采用分离式配置上部受力钢筋，悬臂板上部受力钢筋在内跨应满足锚固长度的要求。
（2）悬臂构件的上部纵向钢筋是受力钢筋，因此要保证其在构件中的设计位置，不可以随意加大保护层的厚度，否则造成板面开裂等质量事故。悬臂板要待混凝土达到100%设计强度后方可拆除下部支撑。
（3）抗震设防烈度为7度(015g)以上，且悬臂板跨度大于2米时，板上下纵向钢筋伸入支座内的锚固长度需满足抗震锚固要求。
