[Midas Gen][ABAQUS][Midas2Abaqus] Tut-1: 3-D Simple 2–Bay Frame [ Midas Gen tut-1: 单层两跨三维框架]

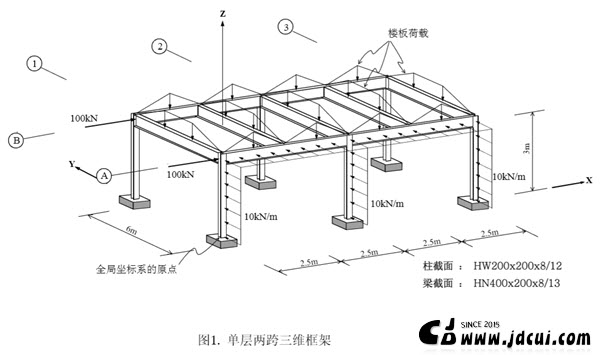

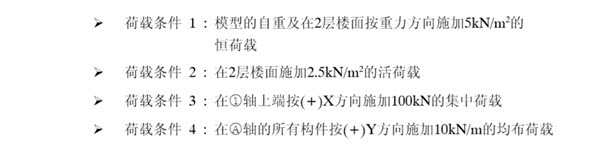

【1】Problem Description

( This model is original come from Midas Gen’s Tutorials – Tut-1. )

【2】Midas Gen Model [ Tut-1: 3-D Simple 2–Bay Frame from Midas Gen’s Tutorials ]

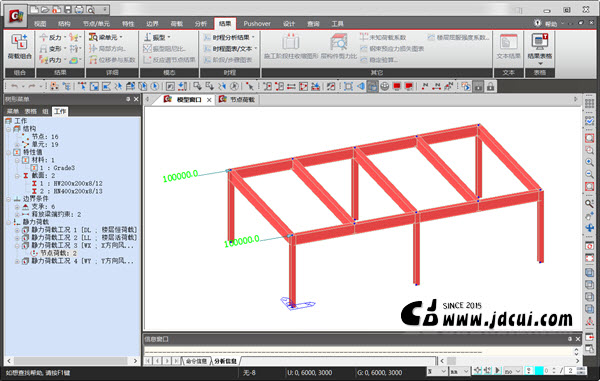

Load Case Wx:

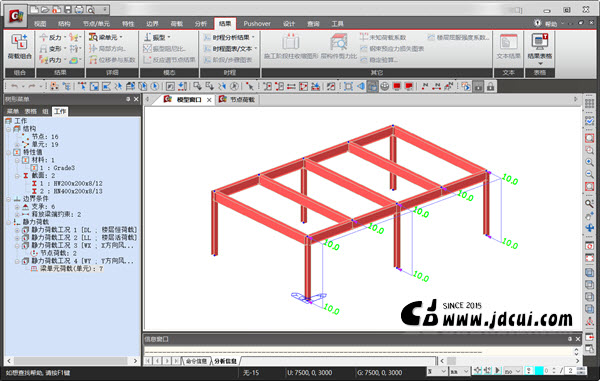

Load Case Wy:

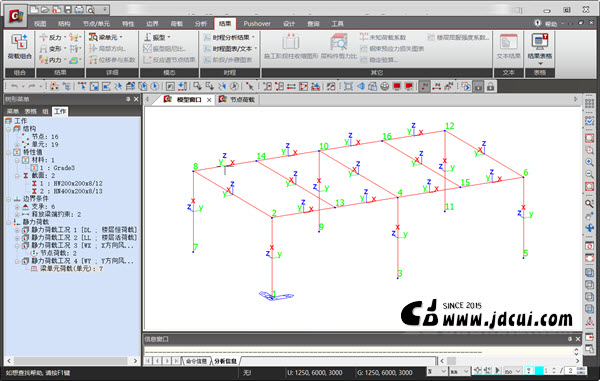

Beam local direction:

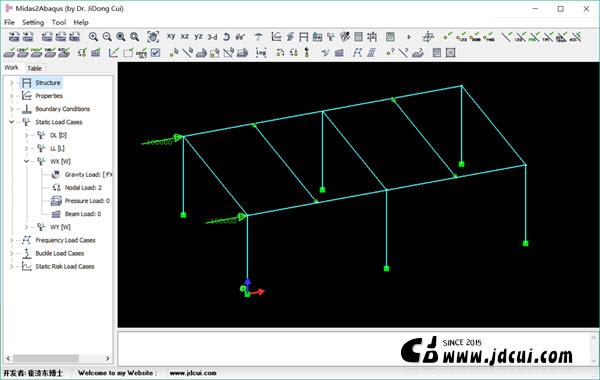

【3】Midas 2 Abaqus Model

Load Case Wx:

Load Case Wy:

Beam local direction:

【4】Abaqus Model

【5】Analysis Results

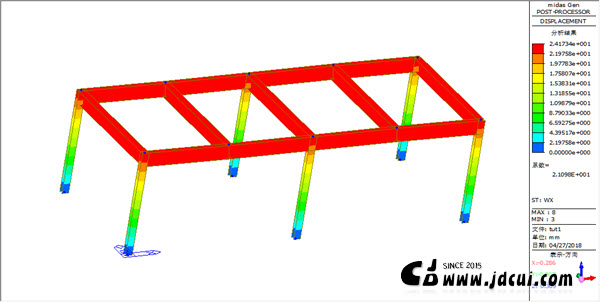

(1) Midas Gen DispX – Wx

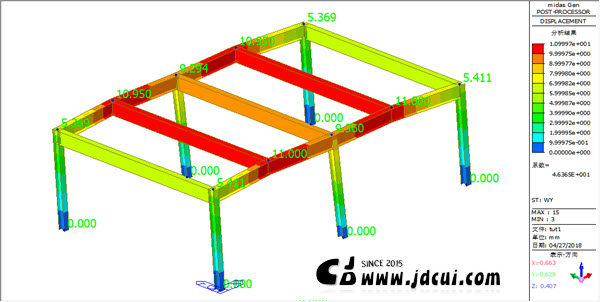

(2) Midas Gen DispY –  Wy

(3) Midas Gen RFx – Wx

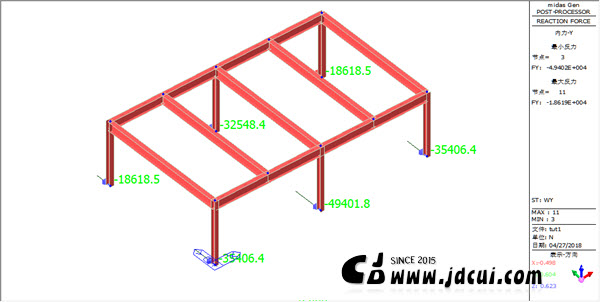

(4) Midas Gen RFy – Wy

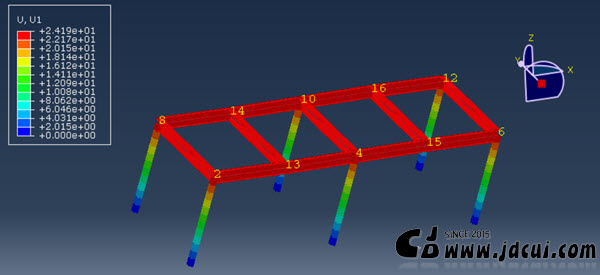

(5) Abaqus DispX – Wx

(6) Abaqus DispY – Wy

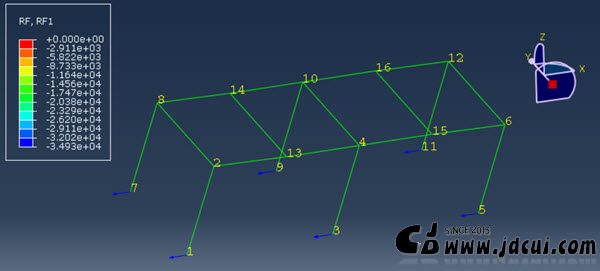

(7) Abaqus RFx – Wx

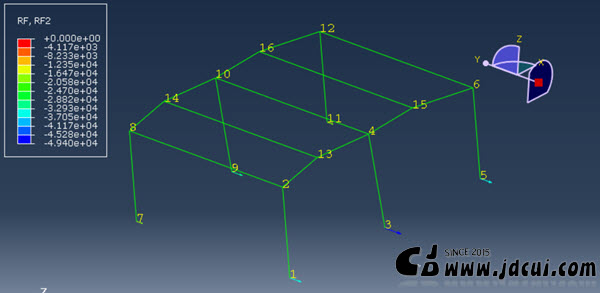

(8) Abaqus RFy – Wy

【5】Comparison of Results

RFX at node 3 of Load Case  Wx :  34930 (Abaqus);  34933 (Midas Gen);

RFY at node 3 of Load Case Wy :  –49400 (Abaqus);  -49402 (Midas Gen);


8 0
