[FEM][有限元][编程][Matlab][Code by myself] 4节点四面体单元 (C3D4)

  (业余时间 和小伙伴一起写写有限元程序

  • 程序作者 ( Author )

JiDong Cui (崔济东) 1, XueLong Shen (沈雪龙)2

1.广州容柏生建筑结构设计事务所;2.华南理工大学建筑设计研究院

  • 基本概念 ( Concept )

4节点四面体线性“完全积分”单元,用Abaqus中的命名规则,即 C3D4。

  • 问题描述( Problem Description)

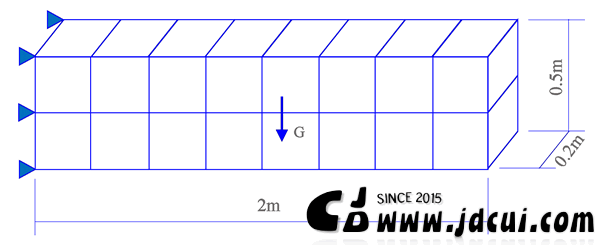

悬臂梁,悬臂长度2.0m,梁高0.5m,梁宽0.2m。梁左端嵌固,受重力作用。材料弹性模量E=200000MPa,材料泊松比为0.3。

基于MATLAB编程实现该悬臂梁的弹性静力分析,采用C3D4单元进行模拟,并将MATLAB的计算结果与Abaqus、midas Gen分析结果进行对比。

  • MATLAB 编程

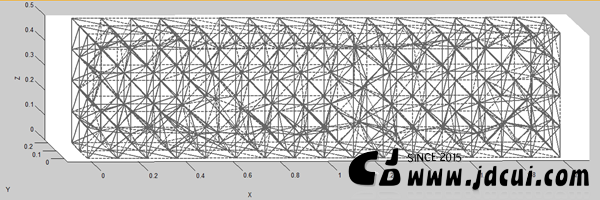

model

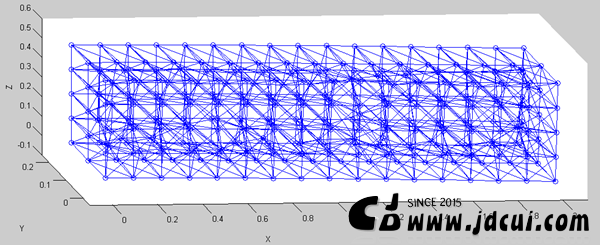

disp

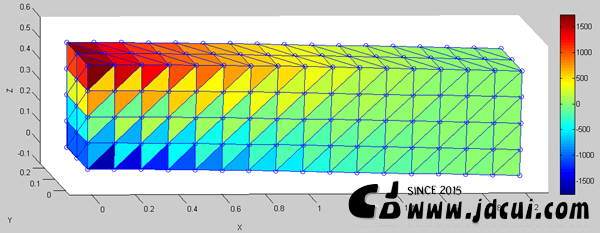

stress

  • Abaqus

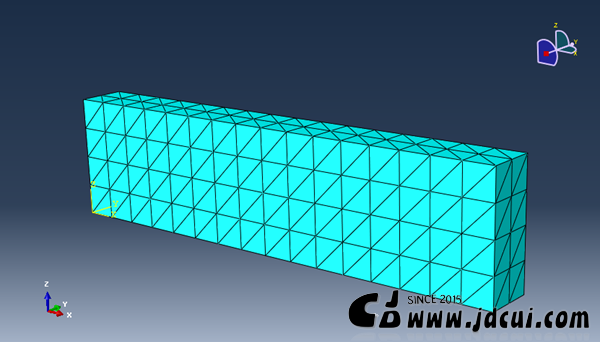

model

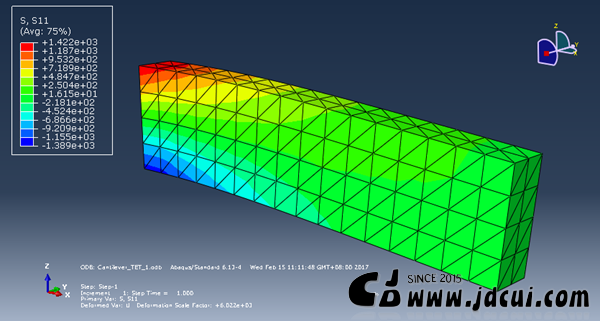

stress

  • Midas Gen

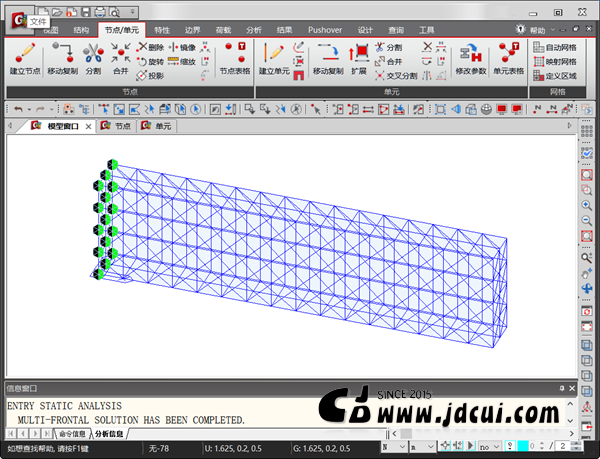

model

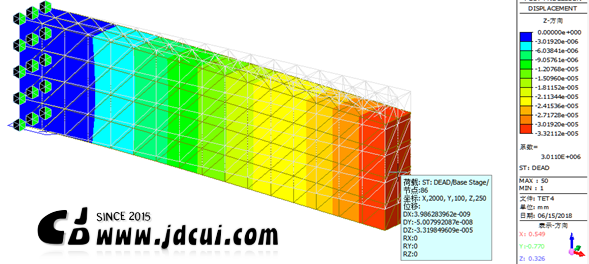

disp

MATLAB编程计算结果是和 Abaqus及 Midas Gen的计算结果是完全一致的。


9 0

  • 注释 ( Comments )

源代码已经收录到新书《有限单元法:编程与软件应用》,详见链接:http://www.jdcui.com/?page_id=9731

  ( 如果您发现有错误,欢迎批评指正。邮箱:jidong_cui@163.com . 如果您喜欢这篇博文,请在上面给我 点个赞 吧! :-)   :-)    ( If you found any mistakes in the post, please let me know. Email : jidong_cui@163.com. If you like this posts, please give me a thumbs up rating on the above button! )

  • 微信公众号 ( Wechat Subscription)

WeChat_QRCode

欢迎关注 “结构之旅” 微信公众号
