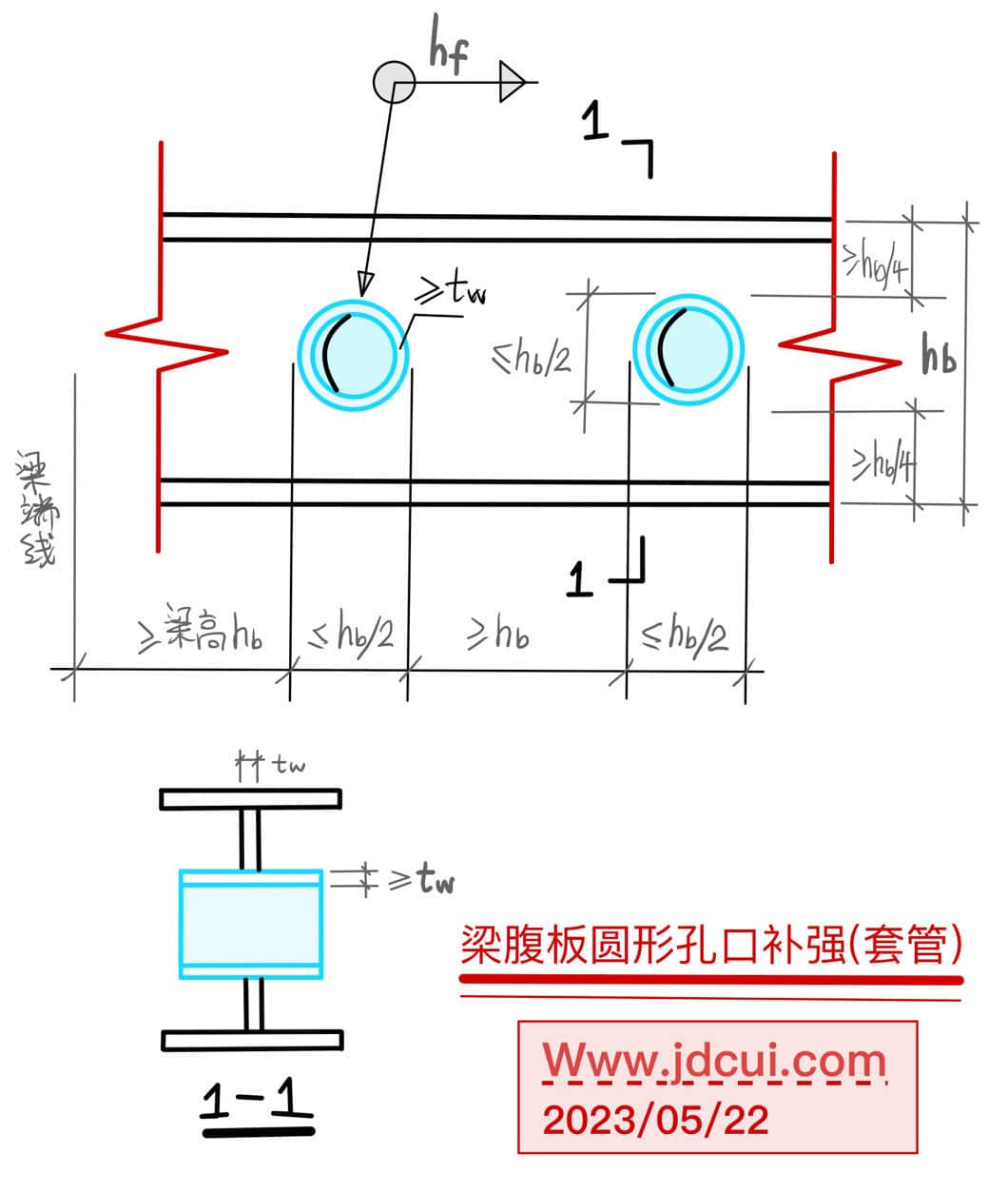

[手绘大样][Detail Drawing] 钢梁腹板圆形孔口套管补强 [Steel beam with web openings (circular hole with reinforcement)]

实干、实践、积累、思考、创新。


参考自图集01SG519《多、高层民用建筑钢结构节点构造详图》
