[软件][科研][试验] 2020版 YPD: Yield Point and Ductility [2020版 YPD: 等效屈服点和延性分析程序]

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。


忙完项目,根据网友要求,更新一下这个YPD程序YPD: Yield Point and Ductility [YPD: 等效屈服点和延性分析程序]

  • 程序图标 ( Program Icon )

  • 程序介绍 ( Program Introduction)

软件根据构件或结构的力-位移骨架曲线计算的等效屈服变形、极限变形和延性系数。软件提供了3种常用的等效屈服位移计算方法:几何作图法等能量法R.Park、最远点法。方便研究而编写的小工具,特别适合于做实验研究的同学。

This program is used for evaluation of yield deformation , ultimate deformation and ductility factor of structures and structural assemblages from laboratory testing , based on the force-displacement backbone curve. F ourcommonly used methods for estimating the yield deformation are provided by the program. These includes : Geometric Graphic Method , Equivalent Elasto-Plastic Energy Method, R.Park Method and the Farthest Point Method. It’s a simple-to-use program.

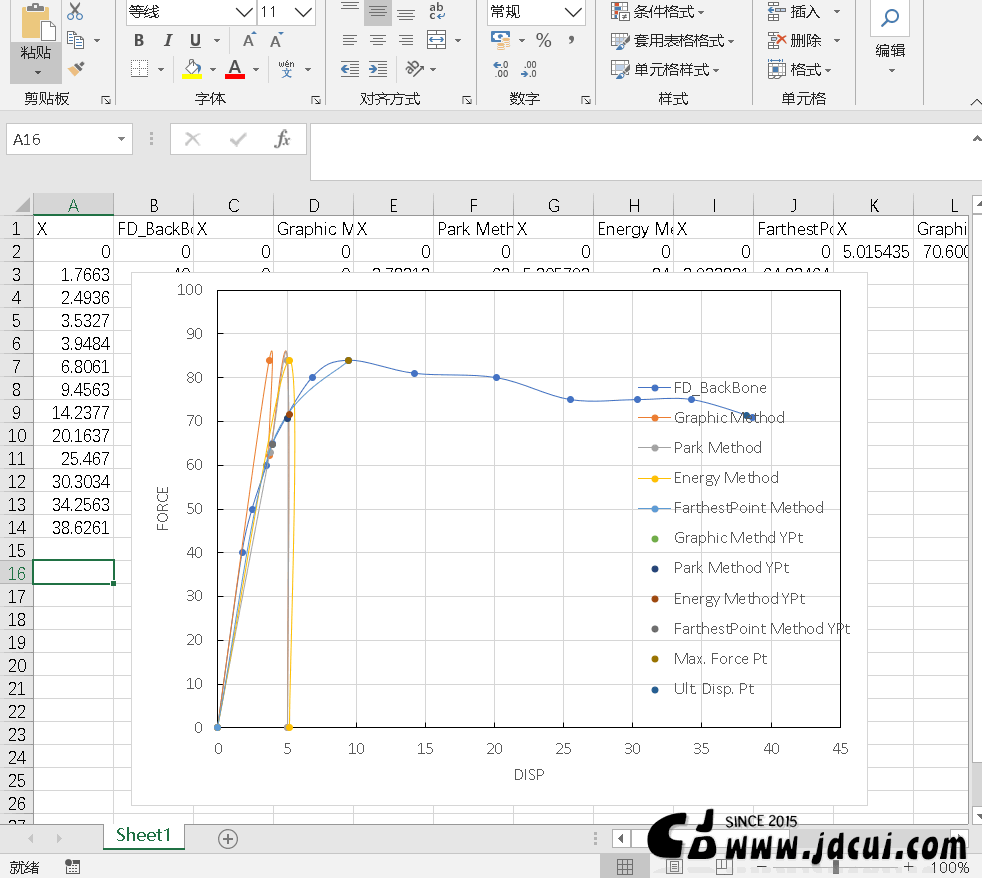

PS. v2019 增加了输出EXCEL图表的功能。

PS. v2020 增加了最远点法,优化了软件界面,增加了其他附属功能。

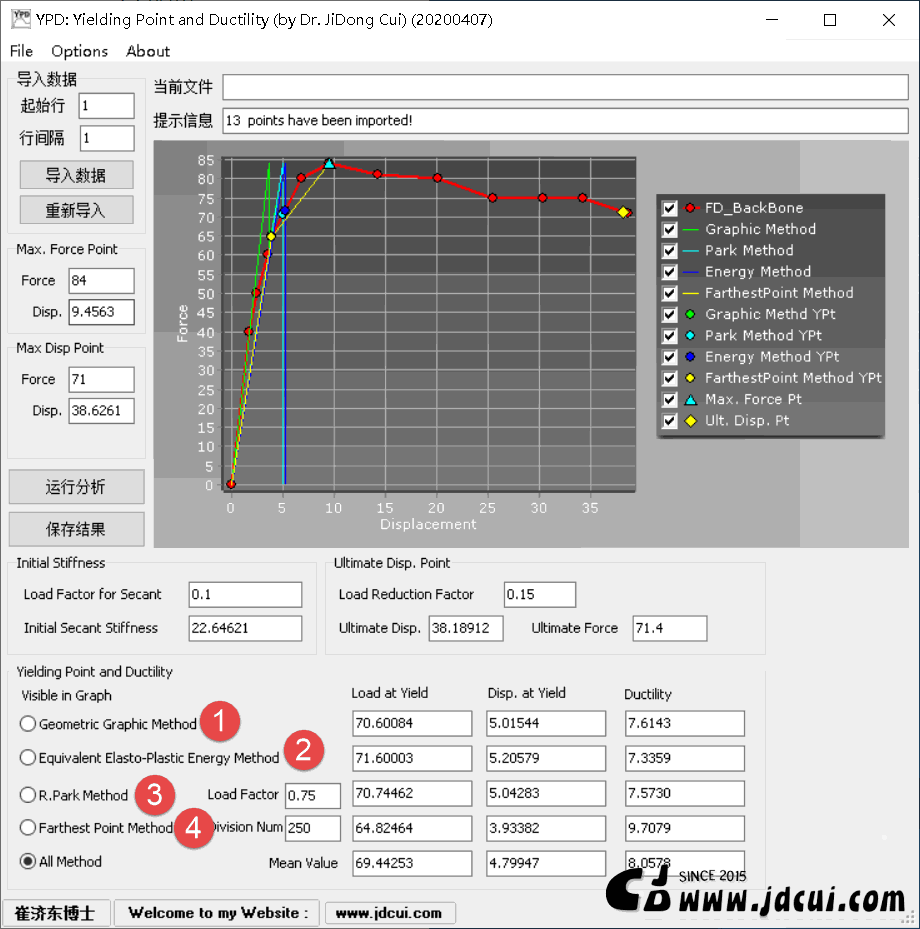

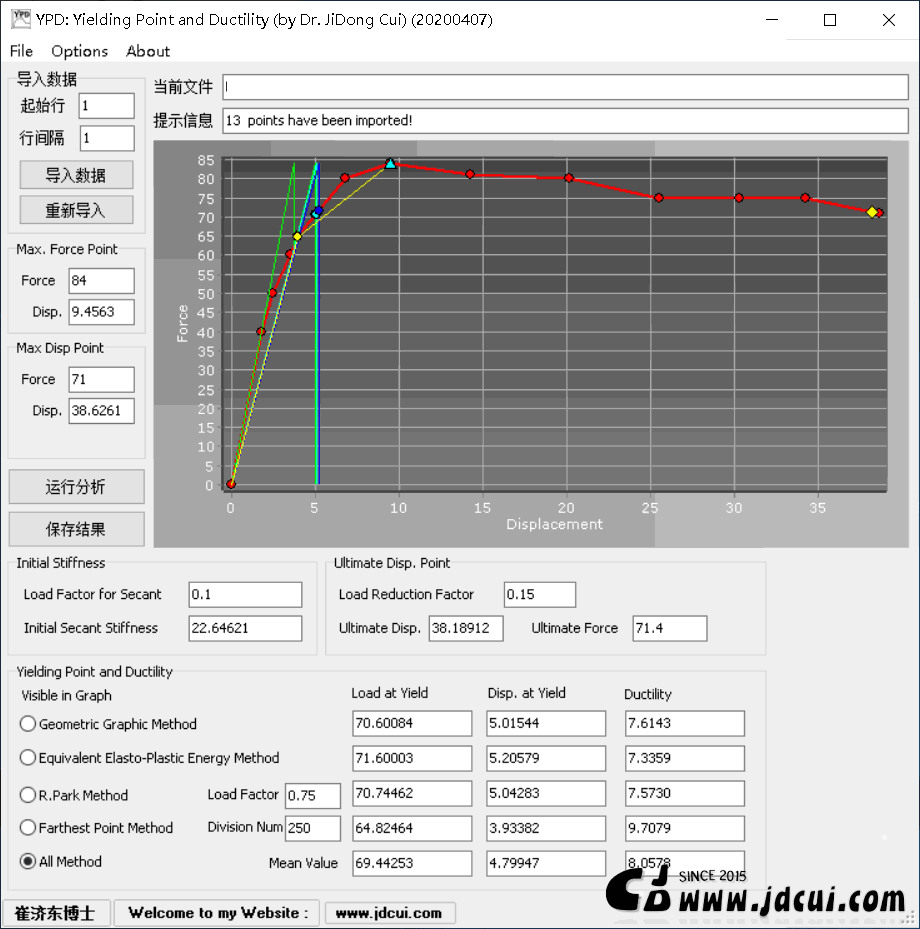

  • 程序界面 ( Program Interface )



  • 程序说明 ( Program Help )

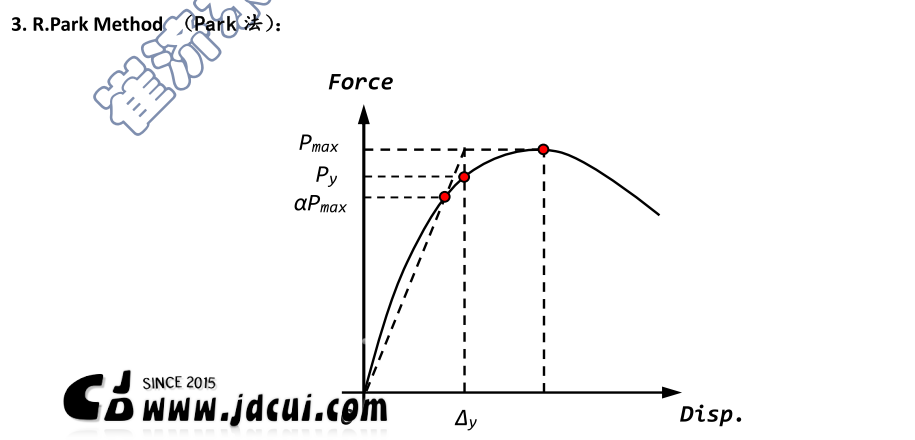

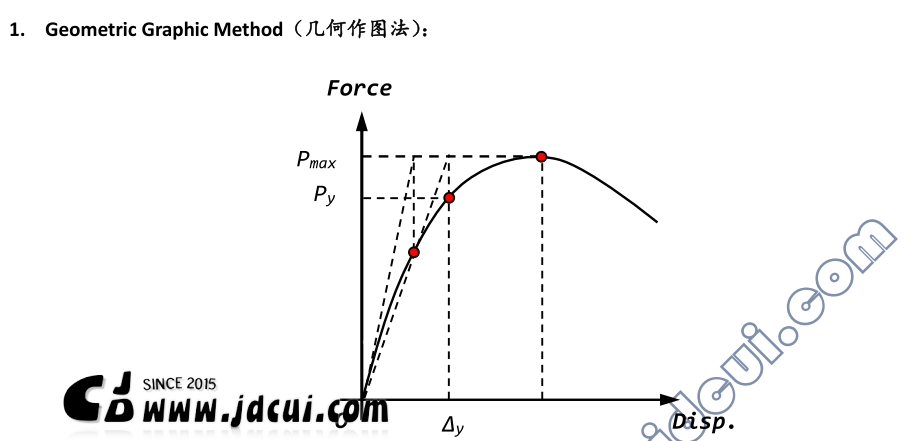

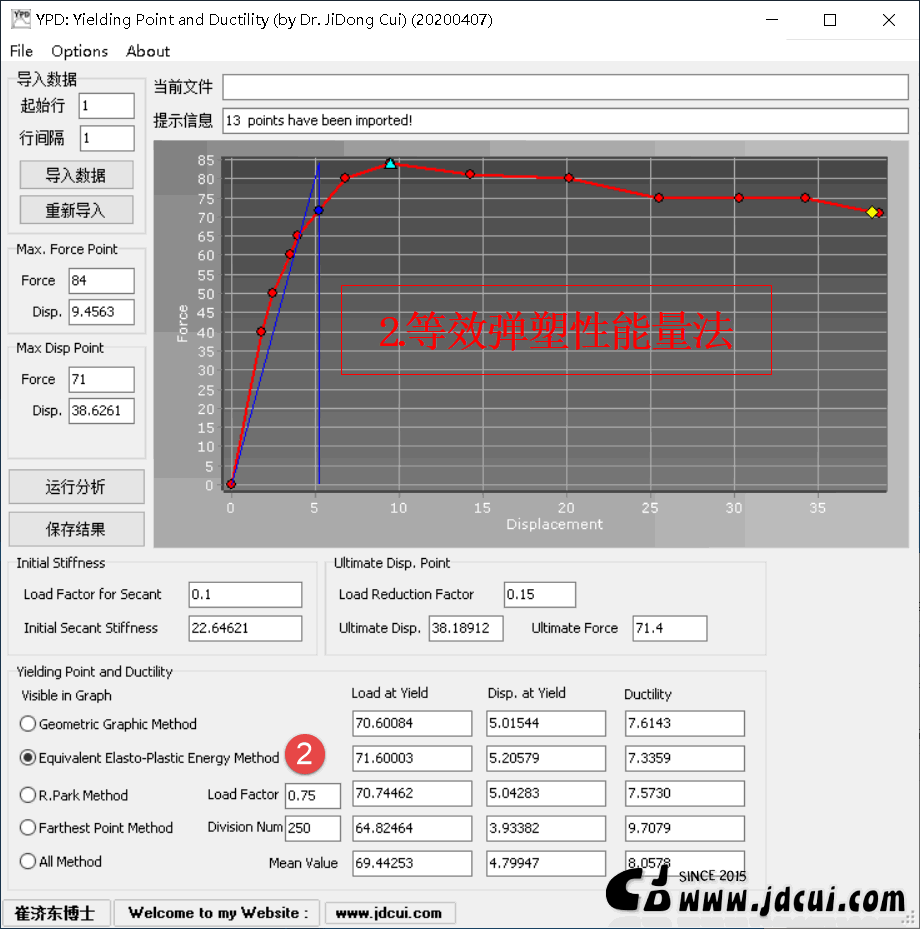

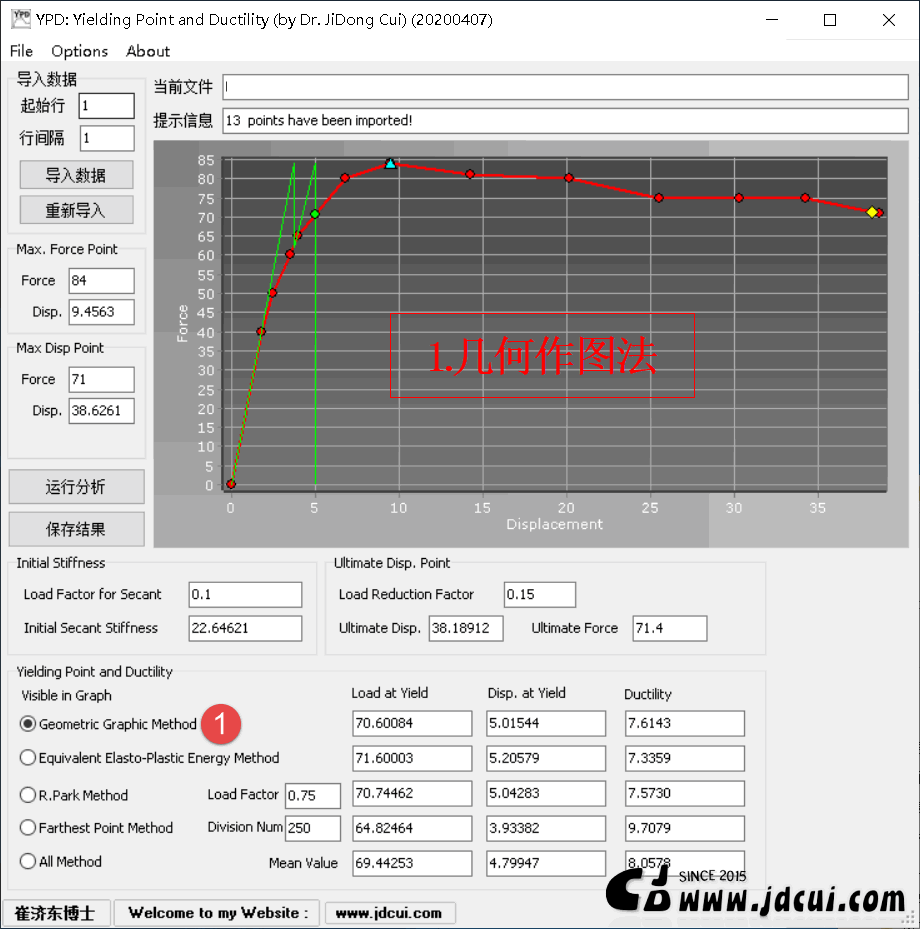

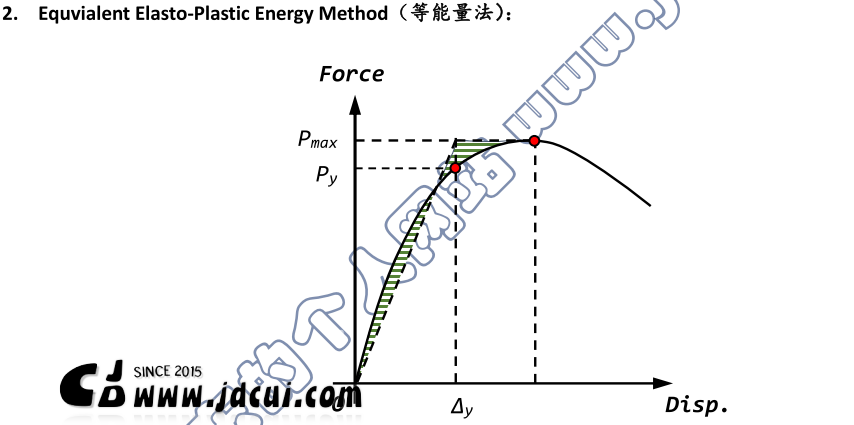

  软件提供4种等效屈服位移计算方法。

Four methods for estimating the yield deformation are provided by the Program

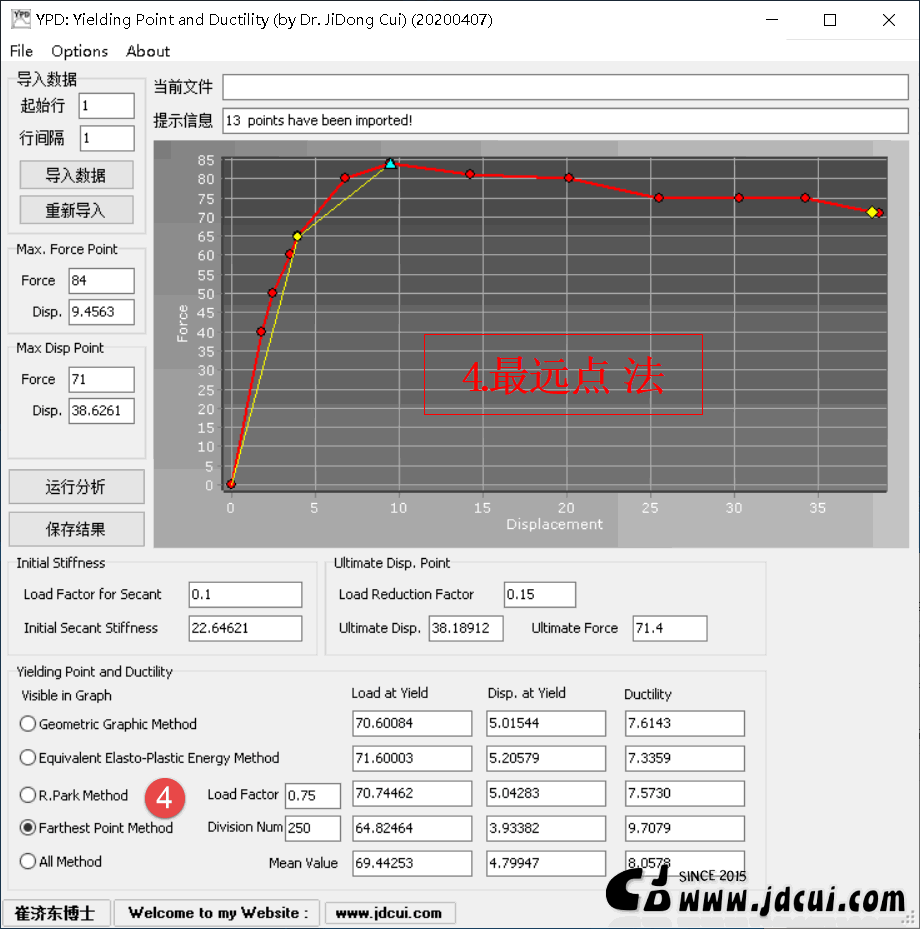

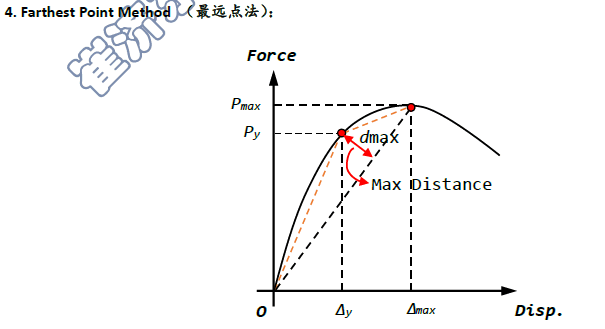

4. 最远点法 (Farthest Point Method)

  • 下载 (  Download )

[01]  等效屈服点求解_by崔济东.pdf

[02]  YPD简易使用手册_20190817.pdf (好心用户整理的)

如果您需要使用这个软件,请在这给网站捐助:http://www.jdcui.com/?page_id=4813,捐助不少于【80RMB】,捐助后在评论区留下您的评论,软件将通过网站管理员QQ:3014479529给您发送,敬请尊重劳动成果 !!!。)

  • 常见问题 (  FAQ)

[01]  [试验][软件使用] 等效屈服点和延性计算程序 YPD 出现 “Invalid Floating Point Operation” 的处理办法

  • 相关博文( Related Topics)

[01] [软件][科研][更新][试验] 2019版 HLA: Hysteretic Loop Analysis Program [2019版 HLA: 滞回环分析软件]

[02] [科研][Tool][软件][试验] HLA: Hysteretic Loop Analysis Program [HLA: 滞回环分析]

[03] [Tool] Hysteristic Loop Area Calculator [滞回环面积求解器]

[04] [科研][工具][软件] Hysteresis Loop Animation Viewer [滞回环动画]

[05] [科研][工具][软件] 滞回环骨架曲线提取工具 [Extract Backbone Curve from Hysteretic Loop]

[06] [软件应用]滞回环分析程序 HLA 应用问题之 — Invalid Floating Point Operation
