[试验][软件][YPD] 等效屈服点和延性计算程序 YPD 提示 “Floating point division by zero” 的处理办法 (案例2)

坚持实干、坚持一线、坚持积累、坚持思考,坚持创新。


小伙伴采用YPD( [软件][科研][试验] 2021版 YPD: Yield Point and Ductility [2021版 YPD: 等效屈服点和延性分析程序] )分析数据,遇到 “Floating point division by zero” 错误,这里记录一下处理方法。

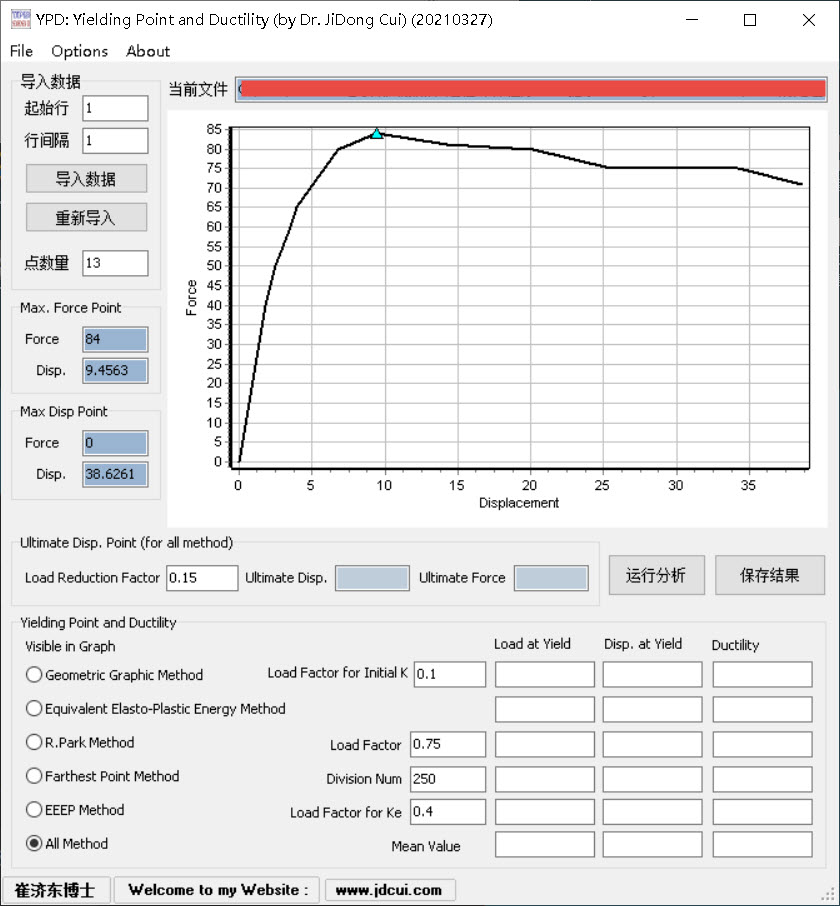

(1)打开软件,导入数据,图形显示数据能导入

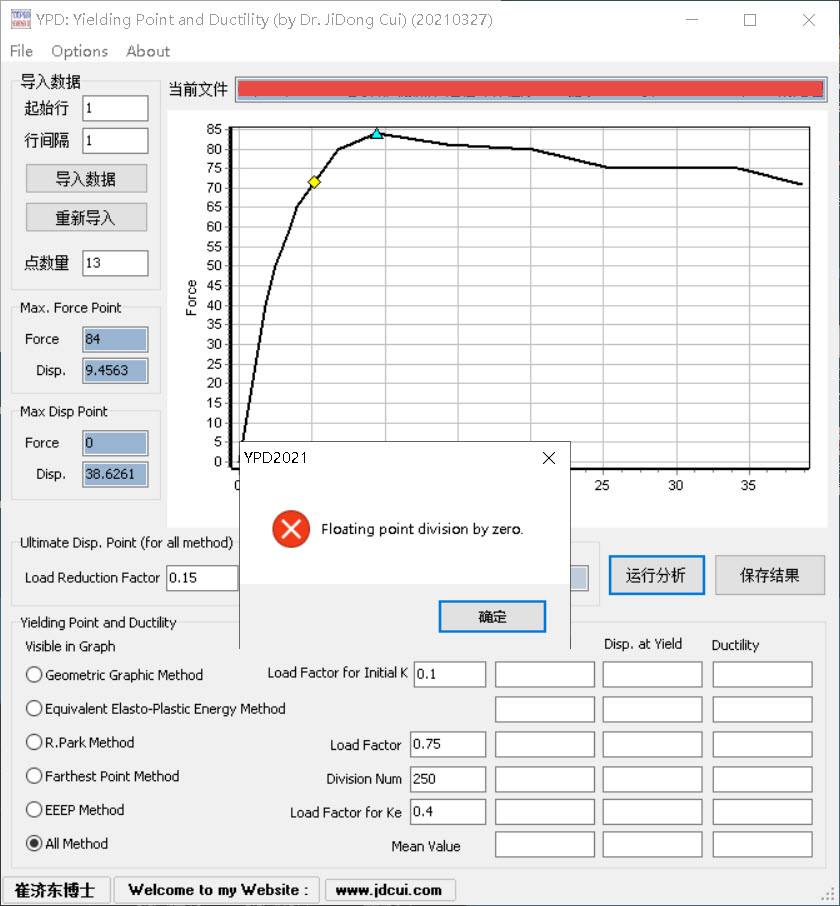

(2)点击“运行分析”,弹出报错 “Floating point division by zero” 错误对话框。

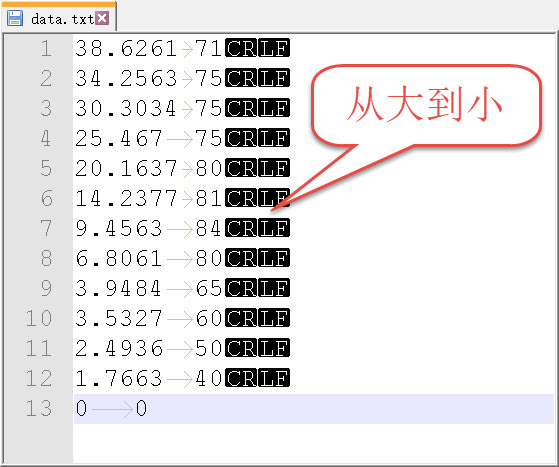

(3)后续检查发现,主要原因是骨架曲线数据是倒序的,是从大到小排序的。YPD应该读入从小到大的骨架曲线。

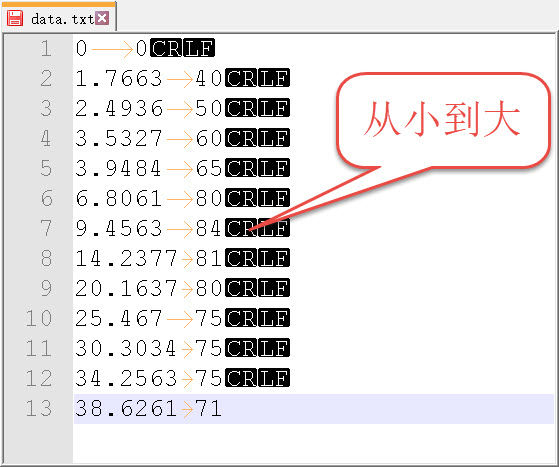

(4)将骨架曲线数据改为从小到大。

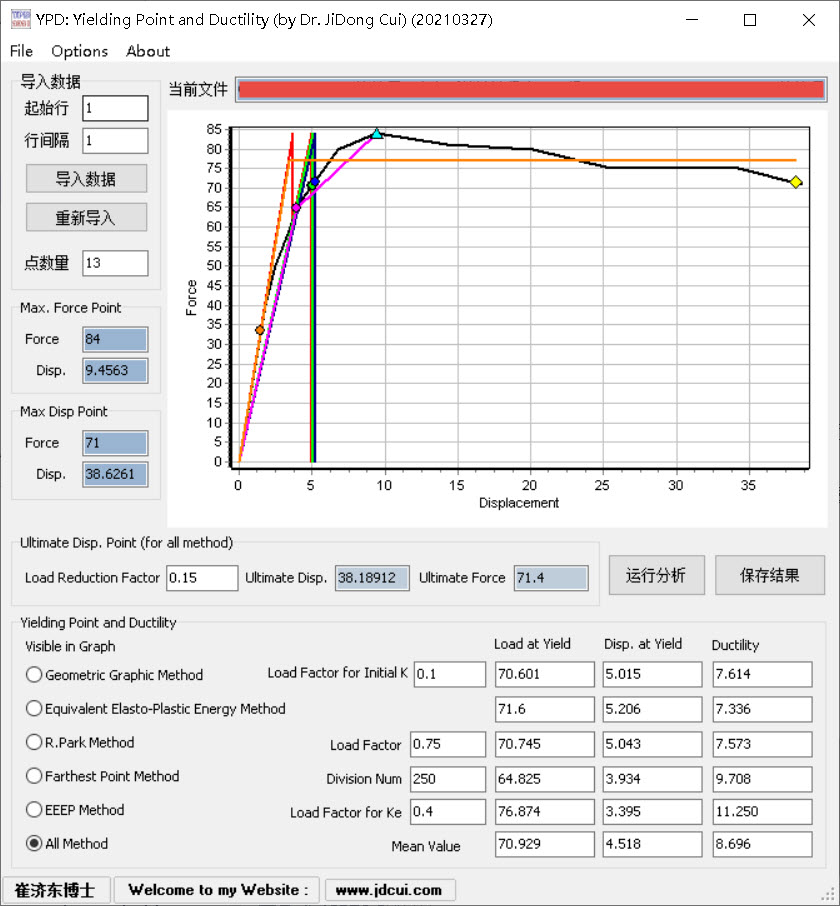

(5)重新导入修改后的骨架曲线数据,并点击“运行分析”,可正确计算并获得计算结果了。
