Modal analysis of a frame using ANSYS (ANSYS框架模态分析)

ANSYS 框架结构模态分析练习。(This is a small example to outline the steps required to do a simple modal analysis of a frame structure using ANSYS.)

  • 算例(Example

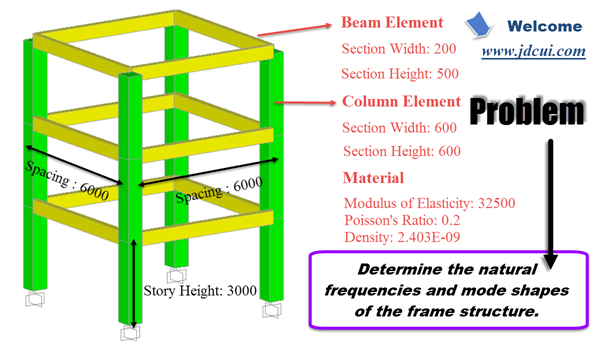

ProblemDescription_Blog

  • ANSYS有限元模拟(FEM Analysis with ANSYS

这个问题可以很简单的通过命令流的方式进行建模,如下给出具体的命令流:

FINISH
/CLEAR
/TITLE,Modal analysis of a frame
/PREP7

!Element type
ET,1,BEAM4

!Material
MP,EX,1,32500
MP,PRXY,1,0.2
MP,DENS,1,2.403E-09

!Real for beam 200X500
!R,NO,AREA,IZZ,IYY,TKZ,TKY,THETA
R,1,100000,3.333E+08,2.083E+09,500,200,
!ISTRAIN,IXX,SHEARZ,SHEARY
RMORE,0,9.981E+08,0,0

!Real for Column 600X600
!R,NO,AREA,IZZ,IYY,TKZ,TKY,THETA
R,2,360000,1.080E+10,1.080E+10,600,600,
!ISTRAIN,IXX,SHEARZ,SHEARY
RMORE,0,1.825E+10,0,0

!Nodes
N,1,-3000,-3000,0
N,2,-3000,-3000,3000
N,3,-3000,-3000,6000
N,4,-3000,-3000,9000
N,5,-3000,3000,0
N,6,-3000,3000,3000
N,7,-3000,3000,6000
N,8,-3000,3000,9000
N,9,3000,-3000,0
N,10,3000,-3000,3000
N,11,3000,-3000,6000
N,12,3000,-3000,9000
N,13,3000,3000,0
N,14,3000,3000,3000
N,15,3000,3000,6000
N,16,3000,3000,9000

!Direction Nodes
N,41,-3000,-3000,12000
N,161,3000,3000,12000
N,91,6000,-3000,0
N,131,6000,3000,0

!Column elements
REAL,2
EN,1,1,2,91
EN,2,2,3,91
EN,3,3,4,91
EN,4,5,6,131
EN,5,6,7,131
EN,6,7,8,131
EN,7,9,10,91
EN,8,10,11,91
EN,9,11,12,91
EN,10,13,14,131
EN,11,14,15,131
EN,12,15,16,131

!Beam elements
REAL,1
EN,13,2,10,41
EN,14,3,11,41
EN,15,4,12,41
EN,16,6,14,161
EN,17,7,15,161
EN,18,8,16,161
EN,19,2,6,41
EN,20,3,7,41
EN,21,4,8,41
EN,22,10,14,161
EN,23,11,15,161
EN,24,12,16,161

!Displacement boundary conditions
D,1,UX,0
D,1,UY,0
D,1,UZ,0
D,1,ROTX,0
D,1,ROTY,0
D,1,ROTZ,0

D,5,UX,0
D,5,UY,0
D,5,UZ,0
D,5,ROTX,0
D,5,ROTY,0
D,5,ROTZ,0

D,9,UX,0
D,9,UY,0
D,9,UZ,0
D,9,ROTX,0
D,9,ROTY,0
D,9,ROTZ,0

D,13,UX,0
D,13,UY,0
D,13,UZ,0
D,13,ROTX,0
D,13,ROTY,0
D,13,ROTZ,0

FINISH

!Analysis options
/SOLU
ANTYPE,2
MODOPT,LANB,12,,,,1
MXPAND,12,,,YES
LUMPM,ON

!Solve
SOLVE
FINISH

!Post process
/POST1
SET,LIST
SET,1,1
PLDISP,1

输入以上命令流,运行分析,即可获得分析结果。

  • 查看分析结果(Check Results

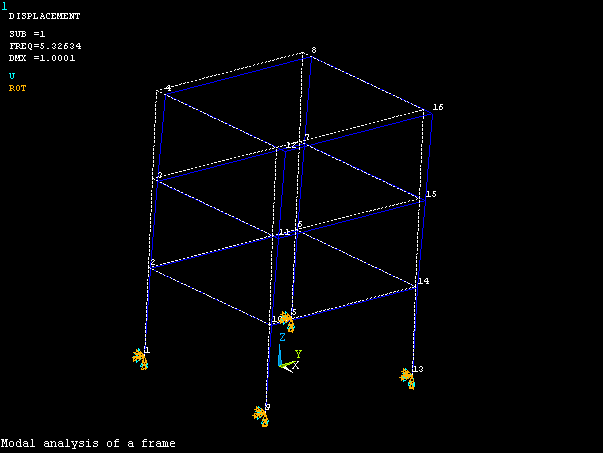

MODE1

MODE2

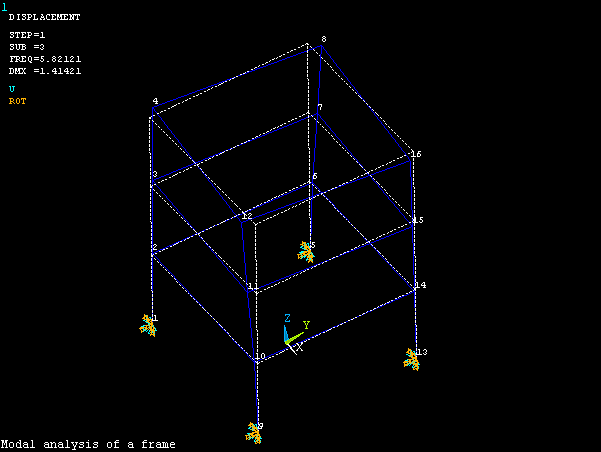

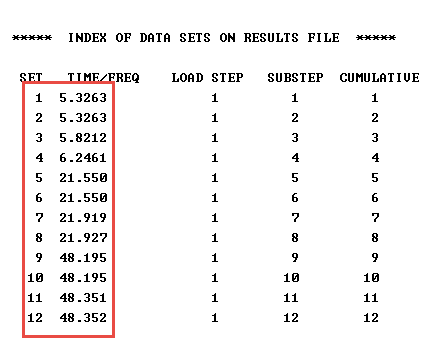

MODE3 ModeList

  • 与SAP2000分析结果对比(Comparison with SAP2000 results

SAP2000中建立欧拉梁单元模型,参见博文 :《Modal analysis of a frame using Abaqus (Abaqus框架模态分析)

SAP2000分析结果:

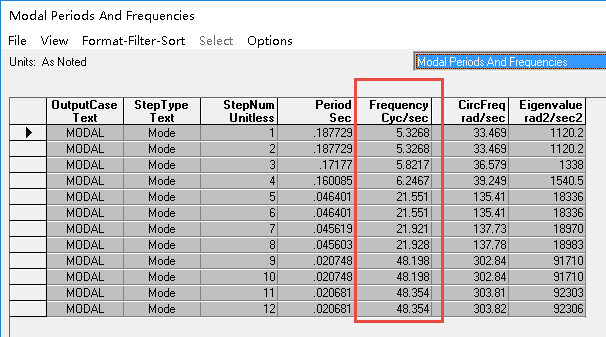

SAP2000Freq

从以上对比可见,SAP2000的分析结果与ANSYS的分析结果一致。
