[书]PERFORM-3D原理与实例 – 第17章 – 结构整体动力弹塑性分析与抗震性能评估 (Chapter 17: Dynamic elasto-plastic analysis and seismic performance evaluation of the whole structure)

[书] PERFORM-3D原理与实例 – 第17章 – 结构整体动力弹塑性分析与抗震性能评估

[Book] PERFORM-3D Theory and Tutorials – Chapter 17 – Dynamic elasto-plastic analysis and seismic performance evaluation of the whole structure


  • 章节内容简介 [ Chapter Content Abstract ]

本书前面章节主要介绍了PEROFRM-3D中常用非线性组件和单元的基本属性与应用,旨在建立正确的结构弹塑性分析模型。本章则侧重于介绍结构整体弹塑性分析模型的建立、结构整体动力弹塑性时程分析的步骤及运用PERFORM-3D[1,2]进行结构抗震性能评估的流程。

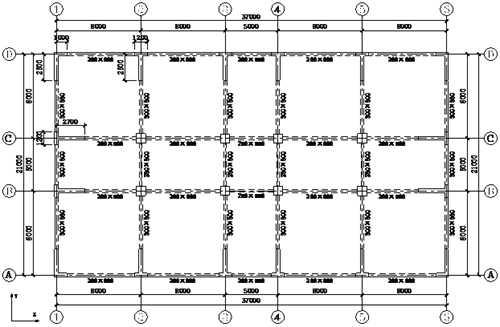

图 17‑1 算例首层平面布置图(单位:mm)

算例结构的首层平面布置如图 17‑1所示,其余楼层结构布置详模型。算例结构为钢筋混凝土框架-剪力墙结构,共17层,其中首层高度4m,其余楼层高度3.5m,结构总高度为60m。

框架柱、剪力墙首层~8层混凝土强度等级为C40,9层~12层混凝土强度等级为C35,13~17层混凝土强度等级为C30;框架梁首层~8层混凝土强度等级为C35,9层~17层混凝土强度等级为C30。钢筋均为HRB400。

结构所在地区的抗震设防烈度为7度,设计基本加速度为0.10g,场地类别为Ⅱ类,设计地震分组为第一组,场地特征周期为0.35s。剪力墙抗震等级为二级,框架抗震等级为三级。

结构建模时将次梁折算成恒荷载,楼面附加均布恒荷载为3.5kN/m2,楼面均布活荷载为3.0 kN/m2,框架梁上线荷载为7kN/m。修正后基本风压0.35kN/m2,地面粗糙度类别为B类,风载体型系数取1.3。

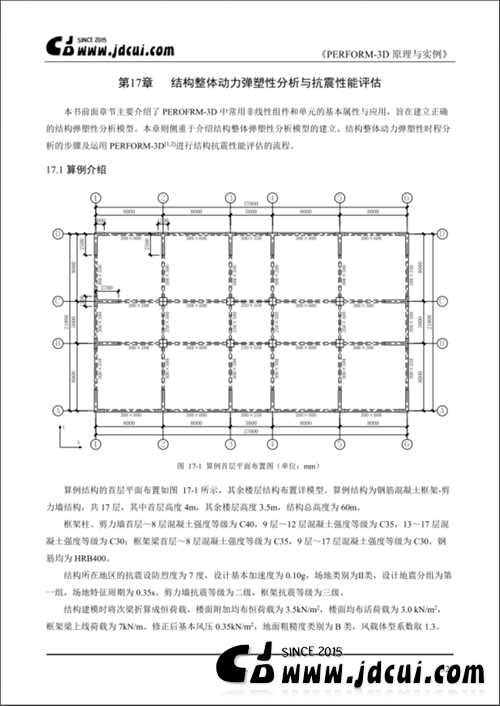

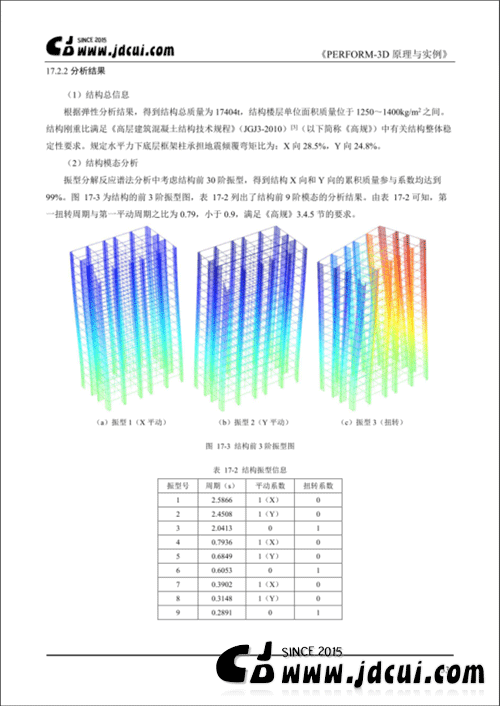

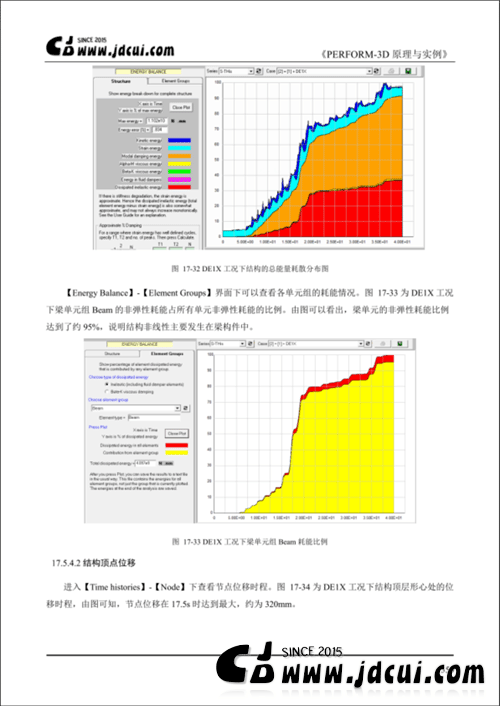

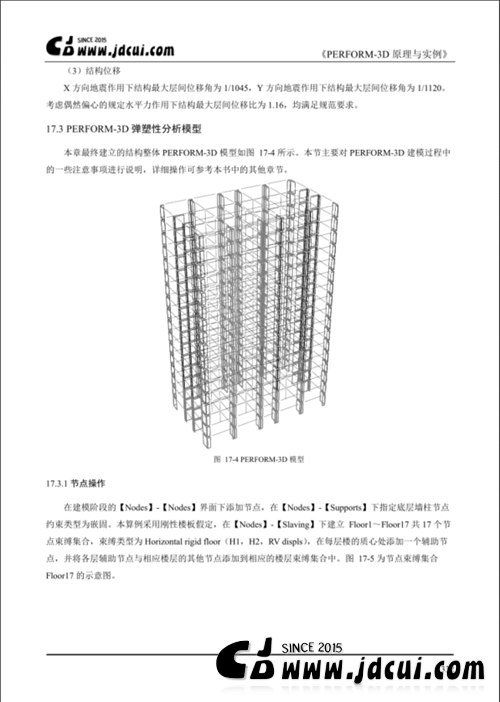

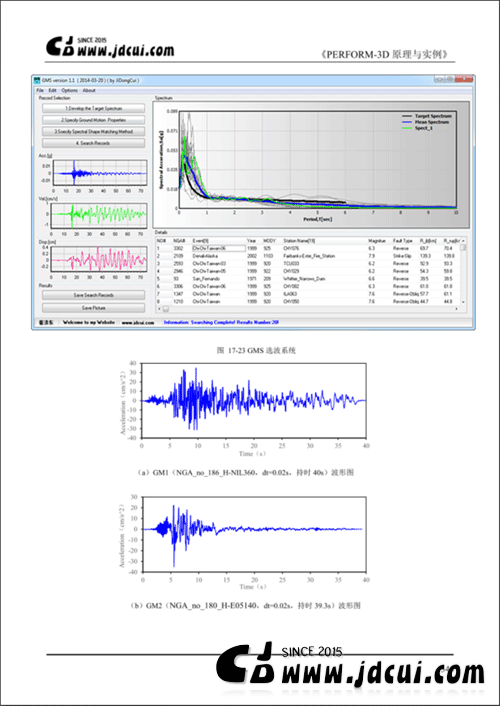

  • 示例页面 [ Sample Pages ]




9 1

PS. 如有错误,请批评指正。如果你喜欢,请在上面 点个赞 吧!!详细内容请阅读书本!! :-)  :-)  :-)

Please correct me if I’m wrong. If you like this posts, please give me a thumbs uprating on the button above! For more information about this Chapter please refer to the book!!  :-)  :-) )
